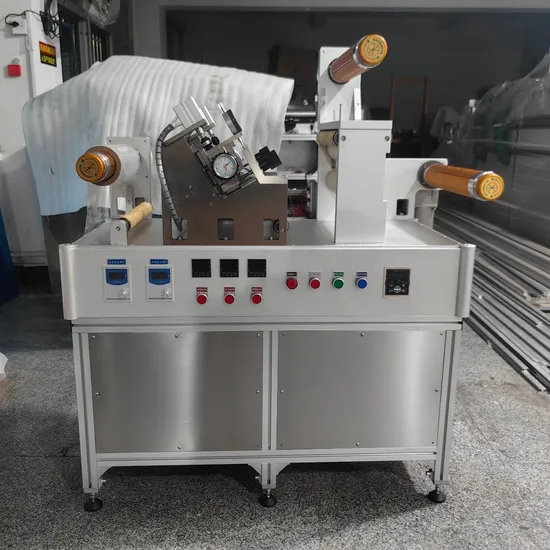

Laboratory Roll-to-Roll Comma Blade Coating Machine for Traditional Chinese Herbal Applications

Product Description

Main Functions and Features: Coating Method:
Uses a comma doctor blade with heating function to ensure an even coating.

Coating Thickness Adjustment:
Supports manual adjustment of coating thickness, ranging from 0.1mm to 5mm, with high-precision coating control.

Heating Control:
Precise temperature control via thermocouple sensors and touch screen temperature controllers, ensuring the stability of the coated material.

Tension Control:
Equipped with an adjustable tension unwinding system to ensure uniform tension of the coated material, preventing stretching or deformation.

Automatic Lamination Device:
Increases production efficiency, suitable for various types of coating substrates.

High Efficiency:
Adjustable coating speed and heating methods to meet different production needs.

Coating Width	300mm (Effective)
Coating Method	Coating Method
Blade Lift	Automatic Lift (Pneumatic)
Coating Thickness	0.1-5mm (Uniformity ±4%)
Thickness Adjustment	Manual Adjustment
Heating Control	Thermocouple Sensor (Touch Screen Temperature Controller)
Tension Control	Adjustable Tension Unwinding (1-25N)
Unwinding Diameter	200mm (Load Capacity 100KG)
Unwinding Shaft	Single Position
Rewinding Diameter	200mm
Machine Frame Material	1. Metal Plated Frame and Aluminum Alloy 2. External Enclosure: 304 Stainless Steel
Equipment Speed	0.5-5 meters/minute (Adjustable based on drying condition of adhesive)
Heating Method	Electric Heating Tubes
Laminating Device	Automatic Laminating
Rewinding Shaft	3-inch Manual Expansion Shaft (Wavy Type)
Motor Control	Variable Frequency Drive (VFD)
Power Supply	220V
Equipment Power	5000W (Total power based on the actual machine)
Air Source Input	0.55Mpa~0.7Mpa

Herbal Patches: Used for manufacturing herbal plaster products by evenly coating herbal solutions onto the patch material for
external treatments.

Herbal Films:
Used to prepare edible herbal films, making it easier for patients to consume herbs orally.
Medicated Gauze Coating:
Coats gauze with herbal solutions to create herbal dressings that aid in wound healing.

Herbal Capsule Coating:
Used to coat herbal powders or liquids onto capsules to control release rates and improve taste.

Herbal Chewing Gum:
Coats herbal ingredients onto chewing gum bases for direct absorption in the mouth.

Herbal Face Masks:
Used in the cosmetics industry to coat herbal extracts onto face mask sheets for skin care.

Herbal Coated Medications:
Coats herbal medicines to enhance stability or modify their release mechanism.

Herbal Coated Food:
Coats food products with herbal extracts or powders to add health benefits.

Herbal Candies:
Coats candies or confections with herbal ingredients to increase their medicinal value.

Herbal Skincare Products:
Coats skincare products with herbal ingredients to repair and nourish the skin.


00:00
00:00

Q: Are your a trading company or factory?

A: Factory+trade (integration), more than 20 years focusing on Lab coating machine field, 5 years exporting experience.

Q: After an order is placed, when to deliver?

A: Generally about 15-25 working days, if there is ready stock for items, we can arrange shipment within 2 working days. Please be aware that our production lead times depend on specific items and item quantities.

Q: What about the warranty with after-sales services?

A: 12 months warranty. We can help you repair your problem parts for free, after the warranty, our professional after-sale service team will provide perfect technical support and help our customers solve problems we encountered while use our products, handle customer problems and complaints in a professional and timely.

Q: What about the product's services and quality?

A: Each piece of equipment must be carried out 100% quality examination and test when shipping and delivering goods. Product use training, each of our products provides video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.

A: Considerate Service Different countries plugs, manually change the voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?

A: Yes, our product can be customized according to your parameters.

---
