Rubber Open Mixing Mill /Rubber Retreading Machine /Rubber Sheet Mixing Mill

Product Description

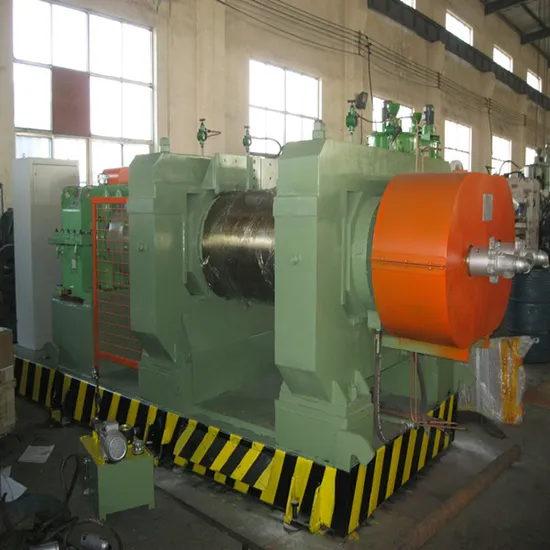

Rubber open mixing mill /rubber retreading machine /rubber sheet mixing mill
This machine is used for mixing the raw rubber materials.
Range of Specification: 160mm-660mm
Construction of mill rolls: Drilled roll, bored roll, grooved roll
Methods of adjusting roll nip: Manually, electrically, hydraulically

Type			XK-160		XK-250		XK-300		XK-360		X(S)K-400		X(S)K-450		X(S)K-560		XK-660
Working diameter of rolls(mm)			Φ160		Φ250		Φ300		Φ360		Φ400		Φ450		Φ560		Φ660
Working length of rolls(mm)			320		620		750		900		1000		1200		1530		2130
Working linear speed of front roll(m/min)			8.95		14.1		15.1		16.25		18.65		24.26		27.7		28.6
Compare before and after the roller speed(m/min)			1/1.35		1/1.17		1/1.27		1/1.25		1/1.27		1/1.27		1/1.12		1/1.24
Max gap(mm)			4.5		10		10		10		10		15		15		15
Capacity per.batch(kg)			1~2		10~15		15-20		20-25		18-35		25-50		50-65		165
Driving motor power(kw)			5.5		18.5		22		30		37		55		90		245
Weight(kg)			1100		3500		5205		5670		7600		13000		22000		49000

---
