Cbb61 Capacitor

Product Description

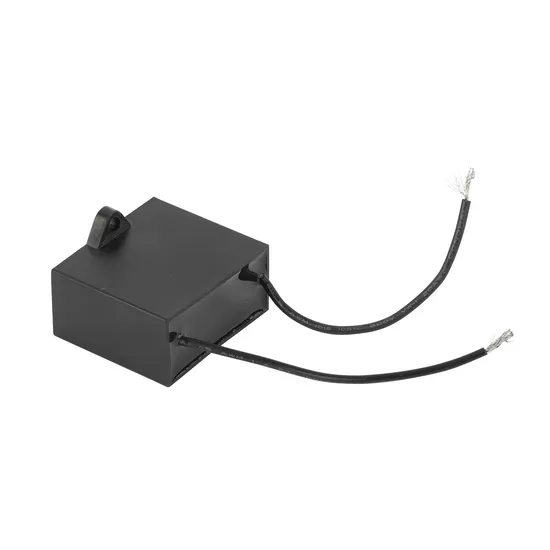

CBB61 POLYPROPYLENE PELLICLE CAPACITORS SERIES
Main Feature:
Low dissipation factor,small inherent temperature rise.excellent
self-healing stability,safety and high voltage withstand,etc.
Applications:
To start and run single phase motors in alternating current usage.
Techinnical Parameters:
Capacitance range:1 uF~25uF
Rated voltage:250~500Vac (50 Hz/60Hz)
Capacitance tolerance:±5%,±10%
Dissipation factor:≤0.0020(100Hz)
Climate category:-25/70/21
Size:

Rated Capacitance(μf }	250V. ac	400 V. ac-450 V. ac
	LxWxH(mm)	LxWxH(mm)
1	37x11 x25	37x11 x25
1.2	37x11 x25	37x11 x25
1.5	37x14x26	37x14x26
2	37x17x27	37x17x27
2.5	37x17x27	37x17x27
3	37x20x27	37x20x27
4	47x18x33	47x18x33
5	47x18x33	47x18x33
6	47x18x34	47x18x34
8	50x23x40	50x23x40
10	50x23x40	50x23x40

Remark: Special requirement can be fulfilled at the request Of Customers

---
