Plastic Recycling Machine/Pet Crushing and Washing Line/Plastic Washing Tank

US$3,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
TZ-500
Material Processed
Plastic Bottle
Plastic Type
PET
Screw
Single-Screw
Automation
Non Automation
Computerized
Non-Computerized
Certification
CE
Width
1.5m
Hight
1.5m
Raw Material
PP PE Pet
Power
2.2kw
Transport Package
by Sea
Specification
5-10m
Trademark
Taizy
Origin
China
Production Capacity
500kg/Hour

Product Description

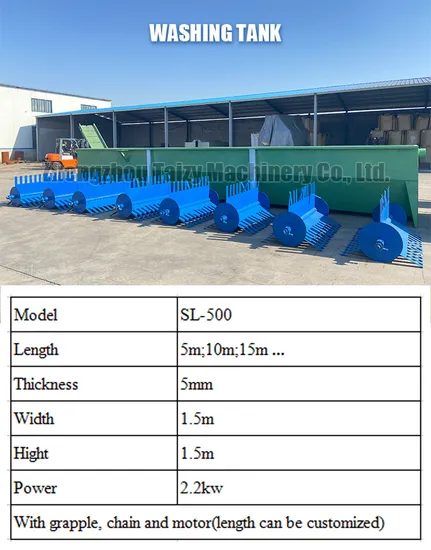

Plastic Washing Tank Plastic cleaning pools are generally used in plastic recycling machines, and the raw materials that can be used are PP PE and PET.
After the plastic is pulverized by the pulverizer, it enters the cleaning tank for cleaning. After the cleaned plastic is granulated, the output will be relatively increased, the impurities will be less, and the particle quality will be better.

The cleaning tank will be equipped with a motor and a pick-up tooth. The raw material will continue to move forward under the drive of the pick-up tooth and enter the next machine. At the same time, the pick-up tooth also has a certain cleaning effect to help clean the raw material.


In addition to cleaning, the PET cleaning tank can also separate the bottle cap from the bottle body. Because the raw materials of the bottle cap are PP and PE, which do not belong to PET, and the density pen water is small, the bottle cap will be separated from the top. When the material outlet flows out, the bottle body PET will sink to the bottom of the water and continue to enter the next machine.


In addition to the motor and teeth on the top of the water tank, there is also a screw at the bottom. The screw will push the raw material forward, help to remove the sediment and impurities on the raw material, and achieve a better cleaning effect.
