China Top Manufacturer Sn4/Sn8 Plastic Culvert Pipe HDPE Double Wall Corrugated (DWC) Sewage Spiral HDPE Pipe for Drainage Sewage

Product Description

High Quality Plastic Polyethylene HDPE Double Wall Corrugated (DWC) Sewage Spiral HDPE Pipe for Drainage
Product Description

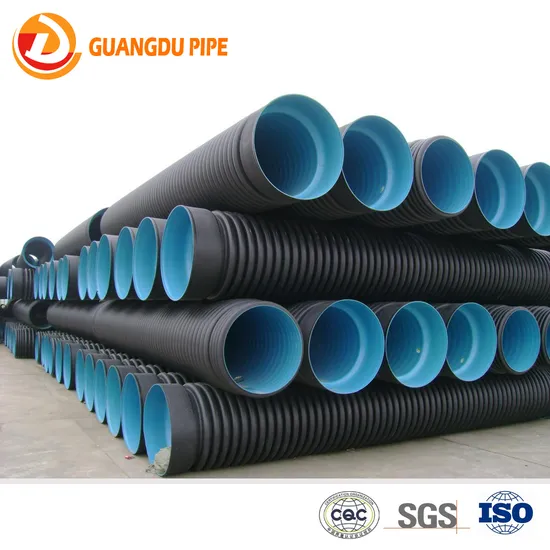

HDPE double wall corrugated pipe is a new type of light weight pipe with high density polyethylene as the main raw material , extruded from both inside and outside. It is one-time molding pipe, has many outstanding characteristics such as light weight, sound insulation,shock absorption, high pressure resistance, good toughness, fast construction, long time service time. Because of convenient and reliable connection, it is widely used at home and aboard.
Product Parameters

Diameter DN/ID (mm)	Minimum mean internal meridian Dim MIn(mm)	Suggestion connection length(mm)	Minimum laminated wall thickness(mm)	Minimum inner wall thickness (mm)
200	198	54	1.5	1.1
300	296	65	2.0	1.7
400	394	74	2.5	2.3
500	492	85	3.0	3.0
600	588	96	3.5	3.5
800	785	118	4.5	4.5
1000	985	140	5.0	5.0
1200	1185	162	5.0	5.0

Project	Requirement
Ring stiffness KN/m²	SN≥4KN/m²	SN≥8KN/m²
Impact property(TIR)/%	TIR≤10%
Ring flexibility	Smooth style, no reverse bending, no cracking, no separation of the two walls
Creep property	≤4
Oven test	No bubbles, no layers, no cracks
Seal test	Pressure 0.05MPa, constant temperature 15min, no leakage, no fracture

Application
1,Municipal drainage and sewage pipeline system.
2, Buried drainage and sewage pipes in residential area.
3,Water system for agriculture irrigation and drainage.
4, Chemical Industry and mining for fluid transportation and ventilation.
5,Overall processing of pipeline inspection wells; highway embedded pipelines;
6,High-voltage cable, post and telecommunications cable protection sleeve, etc.

Certifications
Packaging & Shipping
Company Profile
Shandong Guangdu Pipe Co.,Ltd is professional manufacturer of plastic pipes and fittings with more than 15 years exporting experience. Our company has 30 production lines and covers an area of 20,000 square meters.
Our company's main products are: HDPE,PVC,PP-R,MPP and other series, widely used in construction engineering, municipal engineering, agricultural irrigation and drainage, gas transportation, home improvement, power cable sheathing and other fields. There are nearly 3,000 kinds of pipes and fittings and valve products of different varieties and specifications.
Customer Visit
With 15 years of exporting experience, we have received friends from all over the world. The friends we met at the exhibition and those who visited our factory all spoke highly of our products. We are business partners, but also friends in life. We hope to have more friends to join our big family.
FAQQ1: What is the Raw material ?Re: 100% virgin raw material.
Q2: May I get one sample before placing order?
Re: Yes, Sample are available. Samples are for free and you just need to bear the freight.
Q3: Which payment is available for your company?
Re: T/T, L/C . You can choose the one which is convenient for you.Q4: What is your MOQ?Re: As customers' requests. Q5: why choose us?Re: We are a professional manufacturer with competitive price, good quality and fast delivery time.Q6: Can you Offer OEM service?Re: Yes, we can.Q7: What is the shipping port?Re: Qingdao port or Customer designated port.

---
