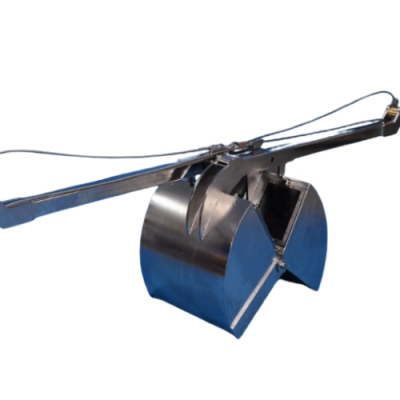

Sediment Sampler for collecting bottom sediments for biological, hydrological and environmental studies.
The bottom sampler grab is based on the Van Veen design. It is made of AISI 316 stainless steel and the surface is electro polished. The grab itself is manufactured from 8 mm plate. Model 12.310 has 2 lids with stainless steel mesh and rubber mats to reduce the shock wave, as per Norwegian ISO standard (16665 Water quality - Guidelines for quantitative sampling and sample processing for of marine soft-bottom macro fauna). All models are equipped with either 2 or 4 lids so you can remove an undisturbed part of the sample without emptying the whole sample.lids.
Ordering No.
| 12.310
|
Sample area:
| 2000 cm² (L: 50 cm, W: 40 cm).
|
Sample volume:
| 50 L.
|
Materials:
| AISI 316 stainless steel. The grab = 8 mm.
|
Lead weights, (13.315), optional:
| Max. mounting: 4 x 10 kg.
Max. net weight = 135 kg.
|
Recommended wire:
| 6 - 8 mm.
|
Dimensions, open:
Dimensions, closed:
| L x W x H: 245 x 55 x 63 cm.
L x W x H: 90 x 54 x 157 cm.
|
Lids:
| 2 lids.
|
Net weight:
| 95 kg.
|
Pallet for shipping:
| L x W x H: 120 x 80 x 190 cm.
|
