PLC Controlled Weigh Scale Gravimetric Batch Blender Mixer Machine Plastic Granules Gravimetric Blender for Plastic Color Masterbatch

Product Description

PLC Controlled Weigh Scale Gravimetric Batch Blender Mixer Machine Plastic Granules Gravimetric Blender for Plastic Color Masterbatch Product Description

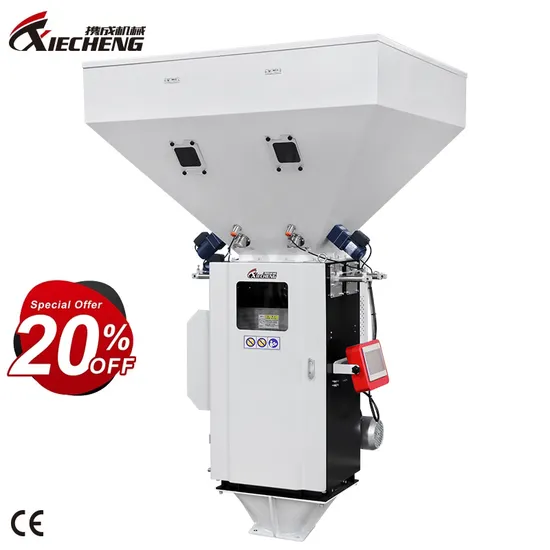

Gravimetric Blender
The Gravimetric Blenders of Xiecheng are used in injection, extrusion and blowing production with more than one materials by different proportional mixture.
Product Specifications

Model	XGB-100	XGB-200	XGB-400	XGB-600
Qty of Group Number	4	4	4	4
Mixing capacity(kg/hr)	100	200	400	600
Batch weight (kg)	3	3.5	8	10
Main material mixing range (%)	5~100	5~100	5~100	5~100
Additive mixing range (%)	0.5~10	0.5~10	0.5~10	0.5~10
Main hopper volume (L)	25	32	45	70
Additive hopper volume (L)	8	12	15	18
Mixing tank volume (L)	10	10	18	25
power supply (V/Hz)	1Φ 230/50	1Φ 230/50	3Φ 400/50	3Φ 400/50
Total power (kw)	0.12	0.25	0.55	0.55
Compressed air (kgf/cm2)	6~8	6~8	6~8	6~8
Max. noise level (dB)	<75<>	<75<>	<75<>	<75<>
H(mm)	1725	1745	1905	1905
W(mm)	925	825	940	940
D(mm)	700	750	910	910
Base (mm) (HxWxDxBxAxC)	200*375*275* 150*150-Φ100	280*535*415* 150*150-Φ100	280*535*415* 150*150-Φ100	280*535*415* 150*150-Φ100
Mobile tripod (mm) (H1xH2xWxD)	660*675*560	660*675*560	800*850*780*610	800*850*780*610
Net weight (kg) (machine installation)	90	130	140	180
Net weight (kg) (floor installation)	110	155	165	230

If you want more sizes, please contact us for details
CONTACT SUPPLIER Product Actual Shooting

Product Details
01 PLC Controller
▪ Using PLC controller, the control accuracy is higher, more stable, and easy to maintain;
▪ The standard model can handle 4 components, models with more than 6 components can be customized;
▪ Color graphic display, touch screen operation, multiple languages for selection;
▪ With formula saving function for more than 100 formulas;
▪ Classified security password control and alarm history record function;
▪ USB2.0 interface for saving recipe data to flash disk, facilitate the quality management.
02 Gravimetric Sensor
▪ Adopt advanced control algorithm, self-optimization, automatic adjustment compensation and vibration prevention functions to ensure the best batching accuracy.
▪ High precision: the ratio error can be controlled within 0.3% -0.5%.
03 Metering Valve
Adopt Side-pull metering valve, and the material ratio is less than 5%. The screw metering valve is used, the blanking accuracy is more accurate, the maintenance is simple, and the replacement is convenient.
04 Paddle
All raw material contact parts are made by stainless steel, prevent the materials being polluted.
05 Siemens Electric
Using the world famous brand Siemens electrical components, the performance is stable.

Working Principle
Machine starts working and dosing valve opens to release material by setting values.If controller detects the discharging quantity reached setting value, dosing valve closes up.If discharging quantity stays within allowed error range, machine will discharge next material. When all the material dosing completes, scale valve opens to release materials into the mixing tank. Mixer motor starts to mix. Mixing time can be settled by controller. Mixture will be discharged to the storage tank and ready for injection.
