2025 New Digital Flatbed Cutting Plotter Auto Feedergrey Cardboardcutting Machine Paper and Corrugated Cutting Table

Product Description

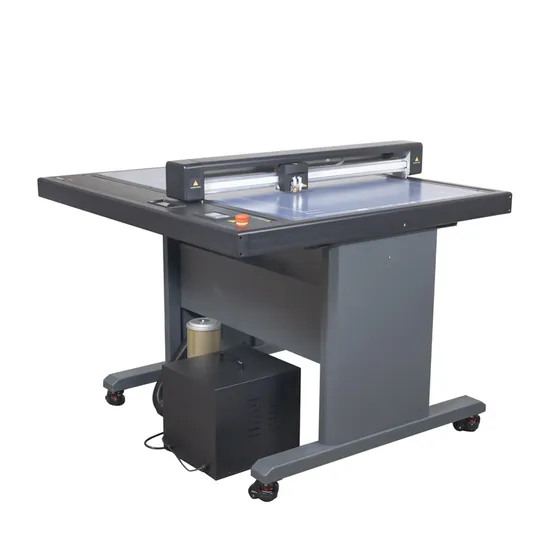

SASD Product Description The Flatbed Cutter Plotter
is an advanced CNC cutting machine designed to streamline cutting processes, save labor costs, and enhance production efficiency. This machine is perfect for businesses that require high-precision cutting for a wide range of soft and medium rigidity materials. Equipped with cutting-edge features such as advanced tool knives, a powerful servo motor, and a vacuum system, the JK-1312 provides unmatched performance.
ITEM JK-1312 JK-1612 JK-1325

Non-contour cutting area	1300x1200mm	1520x1200mm	1300x2500mm
Contour cutting area	1240x1180mm	1490x1180mm	1270x2450mm
Max. media thickness	1.5mm	1.5mm	2.0mm
Applicable media	Soft and medium rigidity media	Soft and medium rigidity media	Soft and medium rigidity media
Method to fix media	Vacuum table (2.2kw vacuum pump with muffler)	Vacuum table (2.2kw vacuum pump with muffler)	Vacuum table (2.2kw vacuum pump with muffler)
Max. cutting speed	600mm/s	600mm/s	600mm/s
Max. cutting force	600G/5.8N	600G/5.8N	600G/5.8N
Cutting force setup	Adjustable in every 1G	Adjustable in every 1G	Adjustable in every 1G
Cutter blade diameter	60mm	60mm	60mm
Dotted lines cutting	Included	Included	Included
Drive	AC Servo	AC Servo	AC Servo
Mechanical resolution	0.0125mm	0.0125mm	0.0125mm
Compatible OS	Win 10/8/7/XP	Win 10/8/7/XP	Win 10/8/7
Memory buffer	2MB	2MB	2MB
Software	Windows driver, Signworkpro, CADtoplotpro	Windows driver, Signworkpro, CADtoplotpro	Windows driver, Signworkpro
LCD language	English/Chinese	English/Chinese	English/Chinese
File format	HP-GL, PLT, U5B, RS-232	HP-GL, PLT, U5B, RS-232	HP-GL, PLT, U5B, RS-232
Port in standard	CCD Camera	CCD Camera	CCD Camera
Reg marks detection	Yes	Yes	Yes
Power input	220V/50-60Hz	220V/50-60Hz	220V/50-60Hz
Power consumption	Cutter: 1.5kw; Vacuum pump: 2.2kw	Cutter: 1.5kw; Vacuum pump: 2.2kw	Cutter: 1.5kw; Vacuum pump: 2.2kw
Working tools	1 pcs blade holder, 1 pcs pen holder, 10 pcs cutting blades included	1 pcs blade holder, 1 pcs pen holder, 10 pcs cutting blades included	1 pcs blade holder, 1 pcs pen holder, 10 pcs cutting blades included
Media bracket	Yes	Yes	Yes
Machine Dimension (L-W)	1700x1800mm	2100x1800mm	1700x2800mm
Packing size (L-W-H)	920x1850x1220mm	2150x1920x1220mm	1920x3200x1220mm
Weight	260kg	340kg	680kg

Key Product Features: Advanced Tool Knife: The Gunner Series Flatbed Knife features a sports car structure, driven by a silent coil motor, ensuring fast, flexible, and long-lasting operation. This advanced tool knife operates continuously without overheating, making it perfect for large-scale cutting tasks. Servo Motor/Closed-Loop Control: The servo motor provides smooth acceleration, high torque, and precise cutting. In case of an overload, cutting/drawing will automatically stop, providing an important safety feature that protects the tool holder if the medium becomes blocked. This feature enhances both safety and durability. Automatic Feeding System Conveyor: The conveyor system automatically feeds materials for long-distance seamless cutting. Coupled with CCD cameras, it ensures that nesting and contour cutting are completed quickly and with high precision, reducing human intervention. Vacuum System: The powerful vacuum system presses materials tightly onto the cutting table, ensuring accurate and fast cutting. This ensures that the tool holder works efficiently, even with thicker or more rigid materials. Intelligent Controller: The GR series flat cutting machine controller uses advanced algorithms, making it easy to upgrade for future needs. It's designed to handle different applications and is suitable for a wide range of industries. Product Parameters
Application fields of machine Widely used in clothing, shoes, bags and handbags, laser die drawing, lighting, advertising gifts, self-adhesive, color box packaging, electronics and other industries of drawing and cutting.
Company Profile Dongguan Diao Bao Automation Equipment Co., Ltd. From China to the world
Diaobao CNC Equipment Co., Ltd. is a company that integrates production, sales, and research and development. It is committed to providing automation equipment manufacturing for global users, and upholds the product development concept of high efficiency, intelligence, environmental protection, and compatibility. Since its establishment, Diaobao CNC has developed rapidly and has two standardized intelligent equipment manufacturing bases with a total area of over 10,000 square meters. We are focus on CNC Machine Parts.It is specialized in five-axis engraving machines, vibrating knife cutting machines, woodworking engraving machines, stone engraving machines, advertising engraving machines, mold precision engraving machines, and CNC engraving and milling machines. The products have passed ISO9001 certification and are reliable in quality and complete in variety. They are exported to the Middle East, Africa, South America, and other regions. They operate stably in the woodworking industry, model industry, mold industry, blister industry, packaging industry, clothing industry, automotive interior industry, leather cutting industry, etc. They have a wide range of benchmarking customer examples. Professional independent core research and development team and well-established after-sales technical department truly provide customer-centric service experience.
FAQ 1.About us We are located in Dongguan, Guangdong Province, China, which is the hometown of CNC automation equipment. We specialize in various types of CNC equipment2.What products do we have? We have many CNC products, including flexible material cutting machines, laser cutting machines, die-cutting machines, engraving machines, fiber optic cutting machines, etc
3.How we guarantee the quality of the products?Each batch of products will pass the test before leaving the factory.Before delivery, we will check the list one by one. 4.Why you should choose us? We have been focusing on CNC automation equipment for over 10 years. We can provide you with a comprehensive solution and offer various models of CNC products. Just tell us what you need, and we will provide you with the most favorable price and the best quality and service 5.What's the payment term?We normally accept T/T, Western Union, L/C, and Paypal. 6.What about the shipping ?We support multiple modes of transportation,such as by express,by air,by sea,by rail and so on.Also can shipping by DHL\FedEx\TNT\UPS\EMS and so on.We can offer different type transactions: FOB\EXW\FCA\DAP\CIF.We can also help you to keep other suppliers goods at our warehouse and shipping together. 7.How to place an order?Just tell us what you need , then we can make a Invoice for you. If all OK , then make the order and weshipping to you the goods ASAP.In order to ensure that all products are what you need, we will show you the pictures, drawings, videosand so on before shipping . 8.What about the delivery time?We have a large warehouse and most of our goods are in stock.When you have order, we can shippingthe goods fast.Generally speaking, the time from our warehouse to the forwarder is about two days, and then the goodscan be sent by DHL FedEx UPS TNT to you.

---
