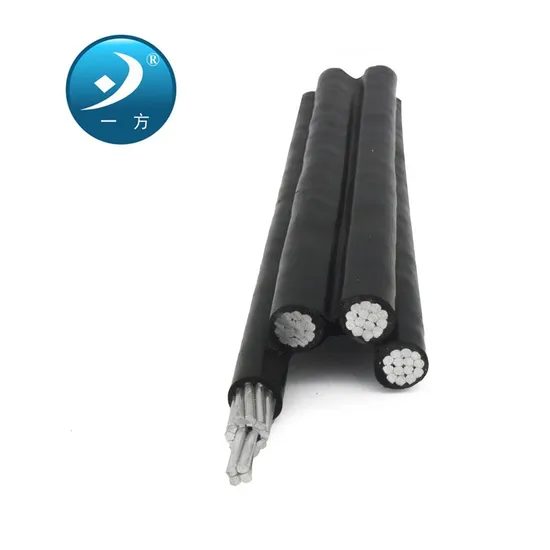

Electric 0.6/1kv Power Aluminum Conductor XLPE Insulated Overhead Aerial Bunched Cable, Duplex/Triple/Quadruplex Service Drop/Urd/ABC Wire

Product Description

600/1000V ABC Aerial Bundled Cables to IEC 60502 & TNB Specification (AL/PE) Application The aerial bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulation aluminium phase conductors are helically wound over it. Can be used for fixed installation as overhead power lines up to 1000 V incl.
Standard TNB Specification IEC 60502 Construction Phase Conductor Neutral or Messenger Conductor Street Lighting Conductor Insulation Assembly

H68 condition aluminium conductor, round stranded compressed.

Alloy aluminium conductor, round stranded compressed.

H68 condition aluminium conductor, round stranded compressed.

PE.

The cable consists of insulated phase and street lighting aluminium conductors, shall be held firmly onto the insulated neutral messenger aluminium alloy conductor in a right hand (Z) lay.

Dimensions Number of cores x nominal cross section min. breaking load of conductor strand Current rating in the air Outer diameter Total weight mm^2 kN A mm kg/km

1x16+1x 25 RM	6.4	61	15.3	160
3x16+1x 25 RM	6.4	61	19.0	290
3x25+1x 25 RM	6.4	84	23.2	400
3x35+1x 25 RM	6.4	104	25.6	500
3x50+1x 35 RM	8.9	129	30.0	680
3x70+1x 50 RM	12.1	167	34.9	920
3x95+1x 70 RM	18.0	209	40.6	1270
3x120+1x 70 RM	18.0	246	44.1	1510
3x150+1x 95 RM	24.2	283	49.2	1870
3x185+1x120 RM	30.8	332	54.9	2340
3x25+1x25+1x16 RM	6.4	84	23.2	470
3x35+1x25+1x16 RM	6.4	104	25.6	560
3x50+1x35+1x16 RM	8.9	129	30.0	740
3x70+1x50+1x16 RM	12.1	167	34.9	980
3x95+1x70+1x16 RM	18.0	209	40.6	1330
3x120+1x70+1x16 RM	18.0	246	44.1	1580
3x150+1x95+1x16 RM	24.2	283	49.2	1940
3x185+1x120+1x16 RM	30.8	332	54.9	2410

Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.

---
