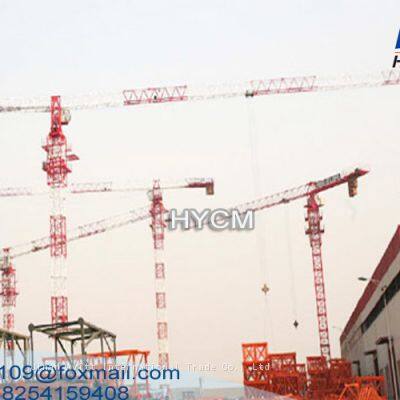

QTZ63(5013) Top Flat Tower Crane Split Mast Sections 30m Free Height 6t Max. Load
Performance parameters and technical indexes reach both domestic and international advanced level.
2. • Max. jib length: 50m;
3. • Max. lifting capacity 6t;
4. • Max. hoisting capacity at jib tip:1.3t;
5. • Rated lifting moment: 630 Kn.m;
6. • Max. freestanding height: 30m; Max. working height of anchored crane: 150m
Rated lifting moment (kN.m)
| 800
|
Lifting height (m)
| Rope fall
| Free-standing stationary crane
| Anchored crane
|
α＝2
| 30
| 140
|
α＝4
| 30
| 70
|
Working radius (m)
| Max. working radius
| 50
|
Min. working radius
| 3
|
Max. lifting capacity (t)
| 5
|
Hoisting mechanism
| Rope fall
| α＝2
| α＝4
|
Speed (m/min)
| 0-80
| 0-60
|
Lifting weight (t)
| 1.5
| 3
| 3
| 6
|
Power (kW)
| 26
|
Tolleying mechanism
| Speed (m/min)
| 0-40
|
Power (kW)
| 4
|
Slewing mechanism
| Speed (r/min)
| 0.6
|
Power (kW)
| 4*2
|
Technical features:
a. Speeds of trolleying and slewing mechanisms are high, good speed adjusting performance, excellent stability.
b. Anti-broken wire rope device and anti-broken shaft device
c. Light structure, good stability, convenient transportation; Mast sections are SAW welding, safe and reliable. Advanced mechanisms, equipped with various safety devices, mechanical or Mechatronics products work in wretched conditions to keep tower cranes work well.
d. Advanced electronic appliances, such as Schineider.
e.. Equipped with excellent safety devices produced by world-class technology, including weight limiter, moment limiter, height limiter, radius limiter, slewing limiter, slewing and trolleying brakes.
>>
