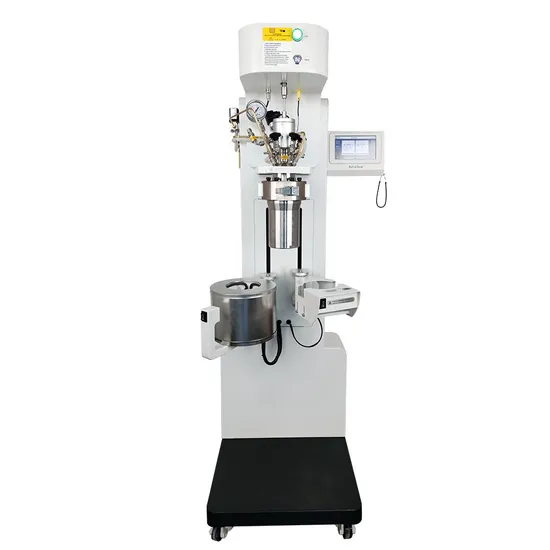

AC2000 Ml Laboratory High Temperature and High Pressure Stainless Steel Automatic Reactor

Product Description

The Beijing Century Senlong Automation Reactor Series is a series of reactors designed for users to conduct scaled up experiments or ground production after the experimental exploration conditions are mature. As a high-pressure chemical reactor, its structural design and functional configuration are suitable for the research, application, and process control of high-temperature and high-pressure chemical reactions in various laboratories today. It is a traditional R&D and production equipment in the chemical industry, especially playing an important role in traditional processes such as liquid-liquid mixing, gas-liquid reaction, and gas-liquid powder mixing. Therefore, it is an important instrument and equipment necessary for related scientific research, which can fully stir various chemical materials at high pressure and temperature to strengthen mass and heat transfer processes. It has been widely used in catalytic processes and catalyst production. Preparation, petroleum, chemical, organic synthesis, polymer material polymerization Research fields such as chemical conversion of food and biomass, exploration of new materials and new arts.

Technical parameter description of automated reaction kettle
1,Host section
1.1 Reactor, kettle head fixed and integral stirring system electric lifting, safe and easy to disassemble
1.2 Full volume: 2 liters to 10 liters, open lid for material retrieval and bottom discharge structure or flipped discharge structure
1.3 The cover, body material, and internal components are all made of 316L stainless steel material
1.4 Mixing driver, material: 316L stainless steel
1.5 composite high-temperature sealing gasket, fixed mechanical arm type, half month quick opening snap ring type seal, A-type dual line sealing structure
1.6 Working pressure/temperature: 10Mpa, 300 ºC
1.7 Heating furnace, fixed self-developed high-temperature metal insulation heater, fast and stable heating
1.8 Mixing speed control module and automatic cooling water control module
1.9 Pressure digital display and overpressure protection module with pressure sensor
2, Automatic reaction kettle cover section
2.1 Dual range pointer pressure gauge and high-precision pressure transmitter
2.2 Safety explosion-proof valve, equipped with corresponding corrosion-resistant rupture film
2.3 Thermowell and K-type thermocouple, used to measure the temperature of reactor material, made of 316L stainless steel
2.4 Gas release valve, used to empty the gas inside the reactor and release pressure, made of 316L stainless steel
2.5 Liquid feed valve, used for feeding, made of 316L stainless steel
2.6 Built in cooling water coil for rapid cooling after reaction, made of 316L stainless steel
2.7 Magnetic coupling driven mechanical agitator, equipped with four blade mold propulsion paddle type (standard), made of 316L stainless steel
2.8 Direct connection stirring drive high torque motor: stepless speed regulation, controllable and stable speed
3, Fully automatic V1.06 control section
3.1 Seven inch high brightness TFT LCD touch screen or computer control system, with rich and comprehensive display content and no blind spots in the field of view
3.2 Identity recognition function, with graded control
3.3 Temperature digital display, dual internal and external temperature control monitoring function
3.4 Pressure digital display with ultra-high pressure protection function
3.5 Real time online curve display function for pressure, temperature, speed, torque, and alarm timing
3.6 Upgradeable to remote operation and control function on mobile devices
3.7 Segmented program temperature control function, with the ability to set multiple experimental conditions and heating modes. The new AI artificial intelligence logic PID algorithm achieves no overshoot or undershoot control for complex and long lag objects
3.8 Automatic storage of experimental data with built-in data recording function, which can display real-time data, historical data, alarm faults, viscosity changes, and provide report form recording data and alarm recording function
3.9 Equipped with data output function, it can be further analyzed and processed on the computer, making it easy to save experimental data for long-term use in academic research papers. Basic parameters of SLZ automated reactor:

Series SLZ Micro-Reactors
Model Number	SLZ2L	SLZ5L	SLZ10L	SLZ20L	SLZ30L	SLZ50L
Sizes,L	2	5	10	20	30	50
Maximum Pressure(WAWP)	10MPa(1500psi)
Maximum Temperature	300ºC
Constant temp Accuracy	±1ºC
Reactor Mounting	Bench Top
Rotation Speed	0-1200rpm
Electrical Supply
Volts,AC	100 or 220V,50Hz
Motor power(W)	70	70	150	150	150	150
Reactor Dimensions
Width,mm	760
Height,mm	760
Depth,mm	1560
Materials of Construction	316L Stainless Steel,Alloy TA2,Alloy C-276.Nickel Alloy,Zirconium materials
Other options available,Please call for more information.

Q1:Are you trading company or manufacturer?
A1:We are professional manufacture of lab equipment and we have our own factory which is a high-tech enterprise integrating R&D, production and sales. And welcome to visit our factory.
Q2: How long is your delivery time?
A2: Usually, delivery time is 30-45 days after receiving your payment.
Q3:How to shipping the replacement parts?
A3:We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
Q4: How about your quality warranty ?
A4: Normally all SENLONG products are supplied with a warranty of 12 Months from the date of shipment.
Q5:Can we visit your factory?
A5: Welcome visit our factory.
Q6:What is your terms of payment?
A6:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Made in China. you will get 100% payment refund if we can't meet agreed delivery time.)

---
