Sgtn Series Rotary Tiller Agricultural Machinery on Promotion

Product Description

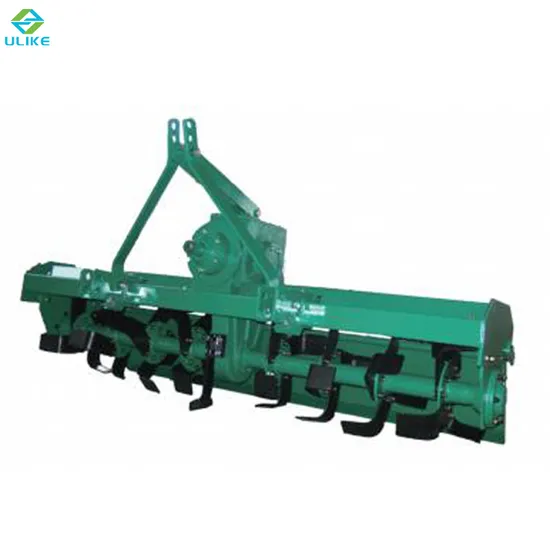

SGTN Series Rotary Tiller Agricultural Machinery on promotion
Detailed Photos
1GQN series rotary tiller with middle gear transmission, it can be mounted with the tractor 12-120hp. We can't see the wheel tracks on the soil after it worked. The quality of rotary tiller is good and the function very well. It issuited to dry land and paddy field. It can save time, labour and money etc.

1GLN series European rotary tiller with side gear transmission, 1GLN series rotary tiller with sidegear transmission, it can be mounted with the tractor 12-100 hp. We can't see the wheel tracks on the soil after it worked. The quality of the rotary tiller is good and the function very well. It issuited to dry land and paddy field. It can save time, labor and money etc strong point.
SGTN series rotary tiller is adopted middle gear transmission system, mounted with the tractor of 12-80HP. Tractor wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. So it can be used on dry and paddy field. lt can reduce the time, laboring, and cost, etc. during operation.

Product Parameters

Type		1GQN-100	1GQN-115	1GQN-120	1GQN-125	1GQN-140	1GQN-150	1GQN-160	1GQN-180
Working width (mm)		1000	1150	1200	1250	1400	1500	1600	1800
Working depth (mm)	Dry land	8-14				12-18
	Water land	10-16				14-20
No. of disc (pc)		18	20	22	26	30	34	38	42
Weight (kg)		175	180	185	190	200	210	230	350
Linkage		Standard three point mounted				Standard three point mounted
Matched power (hp)		18-22	20-25	20-25	25	25-30	25-30	30-40	50-60

Type		1GQN-200	1GQN-220	1GQN-250	1GQN-300
Working width (mm)		2000	2200	2500	3000
Working depth (mm)	Dry land	12-16
	Water land	14-18
No. of disc (pc)		46	50	58	70
Weight (kg)		380	400	420	600
Linkage		Standard three point mounted
Matched power (hp)		55-75	60-80	75-80	90-120

Type		1GLN-85	1GLN-105	1GLN-125	1GLN-140	1GLN-150	1GLN-160
PTO Input speed (r/min)		540
Working width(mm)		850	1045	1245	1345	1495	1595
Working depth (mm)		120
No. of disc (pc)		16	20	28	28	32	36
Weight (kg)		200	220	240	260	280	320
Linkage		Standard three point mounted
Power required (hp)		12-20	20-30	25-35	30-40	30-45	40-50

Type		1GLN-165	1GLN-180	1GLN-200	1GLN-210	1GLN-220	1GLN-230	1GLN-240
PTO Input speed (r/min)		540
Working width(mm)		1645	1750	1950	2050	2150	2250	2350
Working depth (mm)		120-160
No. of disc (pc)		36	40	40	44	44	44	48
Weight (kg)		330	350	560	575	590	605	620
Linkage		Standard three point mounted
Power required (hp)		50-80	50-80	60-80	60-85	70-80	70-90	75-90

Type		SGTN-120	SGTN-125	SGTN-140	SGTN-150	SGTN-160	SGTN-180	SGTN-200	SGTN-250	SGTN-300
Working width (mm)		1200	1250	1400	1500	1600	1800	2000	2500	3000
Working depth (mm)		120-160
No. of disc (pc)		24	24	24	24	24	32	32	40	56
Type of blade
Weight (kg)		200	205	210	215	240	365	400	460	630
Matched power (hp)		20-25	25	25-30	25-35	30-40	50-55	55-75	75-80	90-120
Linkage		Standard three point mounted

Company Profile


Founded in 2006, HENAN ULIKE INDUSTRY Co., Ltd. is a top package equipment solution provider in China, especially for agricultural machinery parts and so onWe Ulike industry are always committed to offer our customers high quality products with reliable performance, competitive price and comprehensive services, to ensure every engineering project to be run smoothly on schedule. With over Fifteen years' experience in the field of Commercial Vehicle, Engineering Machinery, construction machinery, agricultural machinery and accompanying to fulfill strictly ISO 9001: 2008 standard, we had established and have been consistently keeping good business relationship with many general contractors, civil engineering firms and construction companies throughout the world. We Ulike industry participated as package equipment provider previously include airport projects in Africa, power plant projects in Middle East, dredging projects in South America, highway projects in Oceania, rural and municipal road projects in Southeast Asia, and we are still achieving more and more projects at present. To provide reliable products with quick delivery time, to make prompt reaction for spare parts and after-sales services, to visit the users field regularly for local training and maintenance, Ulike industry has been often praised by our customers and has taken great reputation as a trustworthy project partner. Ulike Inductry believe in combining our own achievement together with our customer benefits. Open communication, effective planning and elaborative preparation always commit us to execute and deliver our promises for our customers all over the world.
After Sales Service

Before-Sale	After-Sale
1. Airport pickup, Booking hotel.	1. Visiting the famous scenic spots in zhengzhou.
2. Visiting our company yard, Enjoying Free test drive.	2. 1-Year warranty for All the equipments
3. Different machines to compare with each other.	3. A lifetime of parts and technical support.
4. Interpreting mechanical configuration information in detailed.	4. Fast parts deliver and quick reply for any feedback .

FAQ
1. How many days it need to deliver farm tractor?
We have more than 15 years experience to produce farm tractor and implements,as usual,we only need 15- 30 days to finsh it.
2. Why should I choose your farm tractor?
We are a professional manufacturer of agricultural machinery for more than 15 years,we attended many national projects and the customers are satisfied with our quality.
3. What are your payment terms?
T/T, L/C, Western Union, Moneygram, Paypal or other.
4. Do you have CE and ISO9001 certification?
Yes,all of our product have passed CE and ISO9001 certification.
5. How long is your product warranty?
Our warranty period is one year.

---
