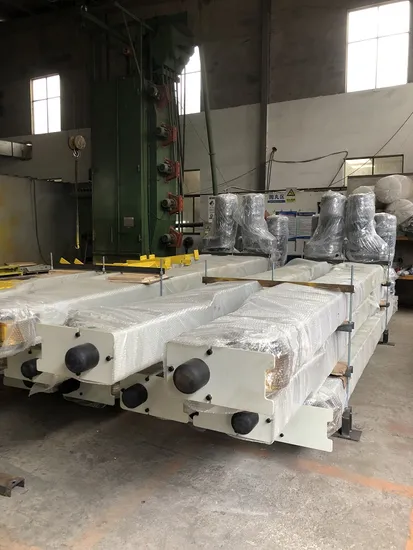

Hollow Shaft End Carriage-European Style

Product Description

Boogie Design:
One set boogie include 2 driving wheels, 6 following wheels
Wheel Dia.: 500mm, 630mm, 710mm
Wheel Material: 42CrMo Forging Steel

Bridge Crane Price Description:
1>HD Europe type single-girder crane with perfect performance
2>Europe type electric hoist double-girder crane
3>General LDA model single-girder crane
4>LP deflection suspension single-girder crane that can increase lifting height
5>Low-headroom single-girder crane that can reduce the construcction height
6>General LX model suspension crane
7>Non-power SL manual single-girder crane that can satisfy special requirement
8>SLX manual operation suspension crane
9>Muliti-pivot suspension crane with low wheel pressure
10>XG type suspension crane that can be user for super span
11>General LH type electric hoist double-girder crane
12>General QD model bridge double-girder crane
13>QZ type grab bucket double-girder crane adaptable to stuff loading and unloading
14>Overhead crane with magnet
15>Metallurgical overhead crane adaptable for high temperature work place

Full automatic micro-computer controlling hoist trial system;
Ultrasonic non-damage test; Multi-function 100t hoist trial platform; X-ray non-damage test; Physics and chemistry laboratory; HW-2000 infrared carbon and sulfur analysis equipment
Advantages:
Reduce maintenance cost of your wheels and wheel assemblies Improve the life of your rail Provide an additional 40% load carrying capability over rim toughened wheels Delivery in 6-8 weeks, less when required Very high degree of hardness with good depth of the treated area. High wear resistance. Excellent impact resistance
Applications:
Overhead cranes Gantry and portal cranes Transfer cars

ΦD (mm)	S1 (mm)	S2 (mm)	A (mm)	ΦB (mm)	W (mm)	C (mm)	K0 (mm)	Weight (kg)
125	1500	1736	50	60	150	212.5	65	84
	2000	2336						104
	2500	2836						124
	3000	3336						164
	3500	3836						184
160	1500	1766	80	80	150	270	65	100
	2000	2266						124
	2500	2766						147
	3000	3266						171
	3500	3766						194
200	1500	1816	80	80	200	325	75	159
	2000	2316						196
	2500	2816						233
	3000	3316						270
	3500	3816						307
250	1500	1866	90	100	200	375	80	179
	2000	2366						220
	2500	2866						261
	3000	3366						302
	3500	3866						343
320	2500	2940	90	100	230	435	80	456
	3000	3440						509
	3500	3940						563
	4000	4440						616
	4500	4940						670
400	2500	3020	100	120	250	540	85	678
	3000	3520						754
	3500	4020						831
	4000	4520						907
	4500	5020						984

---
