Product Description
Product Description

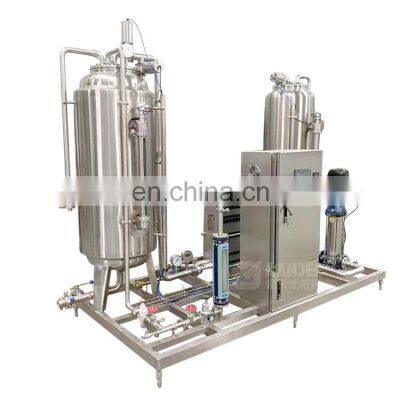

Product DescriptionBeverage / Syrup Mixing Machine / Mixer carbonated drink mixer co2Machine description:Machine description:QHS model carbonated mixing machine is designed with latest technology and used for the mixing of soda and other aerated beverage. The parts that contact the liquid all made of fine stainless steel 304 in accordance with the requirement of food sanitation.Working process:Before syrup pump, there should be a concentrated syrup tank, syrup feeding by syrup pump, clean water feeding by water pump, water and syrup mixing through high pressure pump, at the same time, CO2 injected into mixing pipe, water, syrup and CO2 entering to keep balance tank together, the carbonated drink tank should be fill CO2 to keep pressure balance, so carbonated drink inside going into filling machine.Pictures of Carbonation Mixer:Working with water chillerTechnical Data:ModelQHS-4000Capacity (kg/h)4000Mixing ratio range(water and suger:)3:1—6:1Mixing precision≤2%CO2 content4-5mg co2 in 1L waterSupply CO2 pressure (MPa)0.8—1Exchange heat area(m2)6.5CO2 Consumption(m3/h)3.2-3.5CO2 purity≥99.9%Compressed air consumption(m3/h)5For compressed air pressure (MPa)0.6—1Refrigerant mediumGlycol solution Refrigerant temperature(℃)-2Mixing temperature(℃)<4Clean water inlet pressure(MPa)0.1—0.15Syrup inlet pressure(MPa)0.1—0.15Syrup inlet temperature(℃)≤10Drink outlet temperature(℃)1—2Drink outlet pressure(MPa)≤0.65Power (kw)5.2Machine size (L×W×H)(mm)2100×1500×2200Weight (kg)600Company information Our exhibition FAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare parts?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
