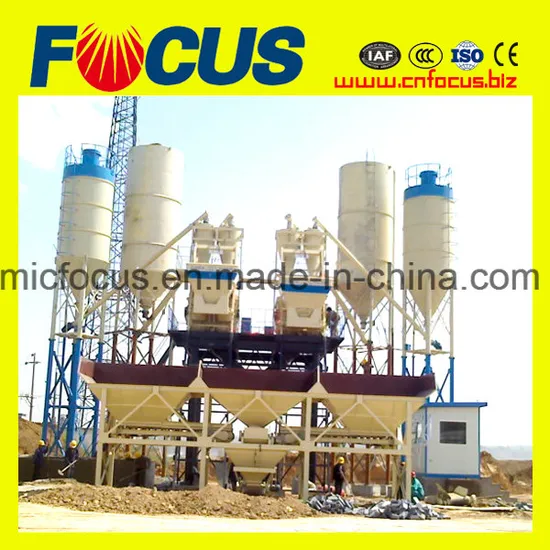

Factory Price! 75m3/H Climb Bucket Concrete Mixing Plant

Product Description

Factory Price! 75m3/H Climb Bucket Concrete Mixing Plant
1. HZS series concrete mixing plant designed by Zhengzhou Focus Machinary Co., Ltd has advanced technology in the world.
2. It is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy, the electric power, the railroad, the road, the tunnel, the arch of bridge, the harbor-wharf and the national defense-project and so on, the applicable scope is extremely wide spread.
3. It can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete. The plant has various operational modes as fully automatic, semi-automatic and manual and so, a high degree of automation.
Parameters of FOCUS Lift Hopper concrete batching plant:

Model	HZS25		HZS35		HZS50		HZS75
Theoretical output(m³/h)	25		35		50		75
Mixer model	JS500		JS750		JS1000		JS1500
Output per batch(m³)	0.5		0.75		1		1.5
Aggregate batcher	PLD800		PLD1200		PLD1600		PLD2400
Total power(KW)	27		35		80		110
Aggregate weighing accuracy(kg %)	(0-1500)±2%		(0-2250)±2%		(0-2500)±2%		(0-4000)±2%
Cement weighing accuracy(kg %)	(0-300)±1%		(0-400)±1%		(0-500)±1%		(0-800)±1%
Water weighing accuracy(kg %)	(0-200)±1%		(0-300)±1%		(0-300)±1%		(0-500)±1%
Fly ash weighing accuracy(kg %)	(0-300)±1%		(0-300)±1%		(0-300)±1%		(0-500)±1%
Additive weighing accuracy(kg %)	(0-40)±1%		(0-40)±1%		(0-40)±1%		(0-50)±1%
Discharge height(m)	3.8-4.1
Max. aggregate dia.(mm)	60	60		80		80
Cement silo and screw conveyor	On request
Total weight (ton)	20	25		35		45
Overall dimension(L*W*H)(m)	11.5*5.8*19.4	12*6*19.4		20.5*7.5*19.4		25.9*9.2*19.4

What are the main features of FOCUS Lift Hopper concrete batching plant?
1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed.
2. With its modularization structure, it is easy to transport, install and debug more quickly.
3. Mixing system choose the spiral mixing system, which has high efficiency, scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable.
6. PC+PLC control system ensures the high reliability.
7. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
8. Human-based intelligent control facilitates the operation greatly.
9. Structural members are durable, and most electric elements adopt world famous brands.
Thanks for visiting, by the time you are paying attention to us, our concrete batching plants are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
For more information please visit us @ micfocus.en.made-in-china.com

---
