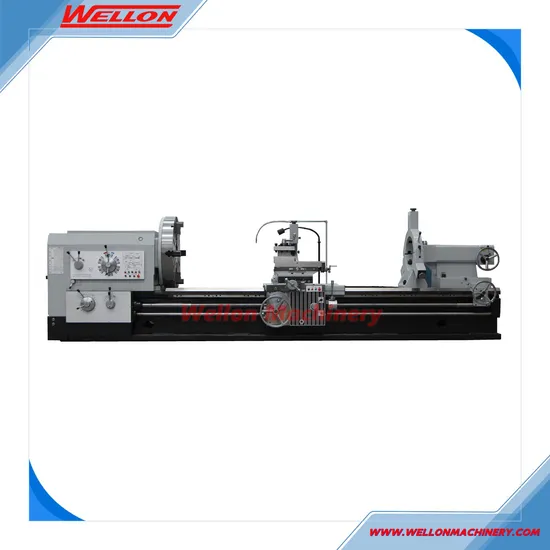

Horizontal Turning Machine Cw61100b Metal Turning Lathe Machines

Product Description

Product Description

Products Description:
Performence Features:
CW61100B parallel lathe are suitable for turning internal and external cylindrical, conical and swing surfaces as well as various metric, inch, module and diametric pitch threads.They can also be used for broaching oil grooves and keyways. There are also following features:
1. Box type internal structure, of high rigidity , with hardened guideway. The precision is stable.And can carry out strong force cutting.
2. On apron,there is a device, operated by a single lever, used for rapid traverse of the carriage.
3. The saddle guideway is glued by 'TSF' soft belt wear resisting materials.
4. The top slide can be used independently for turning of short cone, in combination with longitudinal feeding, it can also turn long taper surface.
5. Bed width 755mm is optional
Technical parameter:

Model		CW61100B
Max swing over bed	mm	1000
Max swing over carriage	mm	680
Center distance	mm	3000 or 4000 mm
Spindle bore and type	mm	104 C11
Spindle taper	mm	MT5
Spindle speed and range	r/min	18kinds 5.4-720
Longitudinal feed	mm/r	64kinds 0.1-24.3
Cross feed	mm/r	0.06-0.912
Rapid moving speed	mm/min	4000
Metric thread	mm	50kinds 1-240
Inch thread	t/in	26kinds 14-1
Module thread	mm	53kinds 0.5-120
Diametral pitch thread	DP	24kinds 28-1
Cross slide travel	mm	520
Top rest travel	mm	200
Tail stock sleeve travel	mm	250
Tail stack taper		MT5
Bed width and hardened	mm	600
Main motor power	kW	11/15
Moving motor power	kW	1.1
Coolant motor power	w	125
Machine width and height	mm	1550x1730
Length
1500	mm	3710
2000	mm	4210
3000	mm	5225
4000	mm	6225
5000	mm	7225
Machine weight
1500	kg	5500
2000	kg	5900
3000	kg	6200
4000	kg	6500
5000	kg	6800
Max loading capacity	kg
1500	kg	2500
2000	kg	3000
3000	kg	3500
4000	kg	4000
5000	kg	4500

Standard Accessories:
3-jaw chuck
4-station tool holder
steady rest
follow rest
dead centers
reducing sleeve
coolant system
halogen work lamp
operating tools
Operator Manual.
Optional accessories:
4-jaw chuck
Digital readout
Taper turning attachment
chuck guard
Live center Company Profile
