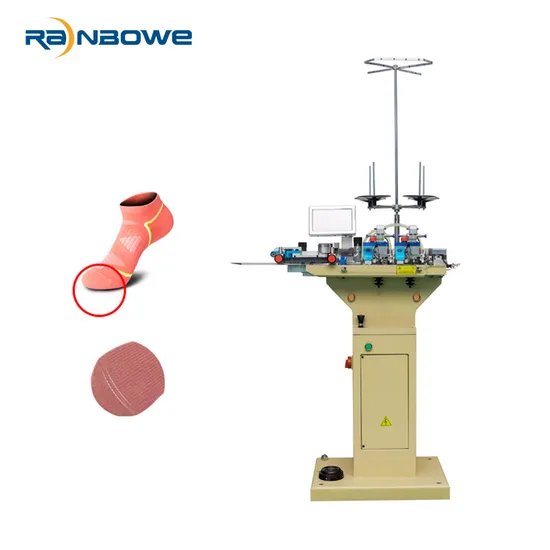

Typical High Speed Muliti Motor Sock Toe Linking Machine for Socks

Product Description

Product Description 383 Sock Toe Closing Machine

Motor	3 motors; 1 brushless motor, 2 stepper motor
Production Capacity	800 pairs/hour
Voltage	220V
Freqency	50HZ
Power	600W (Fan: 370W, Main process equipment: 230W)
Gross Weight	119KGS
Net Weight	71KGS
Package Size	1*0.48*1.3M

1. Automatically lubricating nose device makes a longer performance life and a better working environment with low-noise.
2. Adopting automatically cutting device, the sutures will be cutting unified length.
3. Turnover yarn feeding device makes the yarn cleaning conveniently. Built-in automatic hoisting device is for conveying purpose, assure the socks' planeness.
4. An optical fiber inductive time lapse function as yarn feeding makes it possible to set delay time according to the running speed, which reduces the waste of sutures substantially when sewing.
5. Adopting dual channel nose device, makes the sock sewed with fine flat seams.
6. Adjusting the sewing density of socks is available with a renewal gear.
7. Point-contact touch screen computer control system makes it easy to handle.8. There is an automatic hoisting device between the first nose and the second one, act as anti-dropping appatatus when one-sided undertoe suddenly fall off. This comes to a better planeness and sewing quality, close to handsewers' job.
Spare Parts All knids of sock linking machine spare parts are available !
Sock Production Line The finished socks from sock knitting machine is not completed, so sock toe linking machine is used to make toe closed.There are several types can be offered: one linking motor 181, two linking motor 282, three linking motor 383, five linking motor 585, six linking motor 686. The more linking motor, the better linking effect.One/ Two/ Three linking motor will be more popular to be purchased.(Sock Tagging Machine, Yarn Winding Machine, Grinding Machine depends on your own needs)
