Hot Sale Ibr Sheet Double Layer Trapezoidal Roof Press Making Machine Roll Forming Machinery

Product Description

Product Description

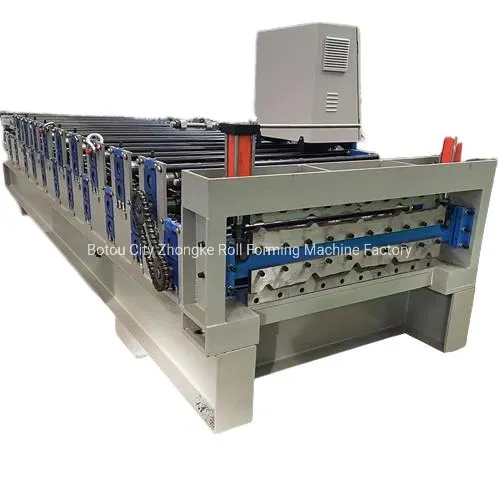

Double layer roof panel forming machine
Tile press is a machine composed of feeding, forming and post-forming cutting. Its color plate appearance is smooth and beautiful, uniform paint pattern, high strength and durable. It is widely used in industrial and civil buildings, such as factory buildings, warehouses, stadiums, exhibition halls, theaters and other rooms and walls. Double layer press tile machine a machine can produce two types of tile, which can save money cost, and reduce the occupation area, one machine double use.
Machine Working Flow
Product Parameters

ITEM	SPECIFICATION
Material Thickness	0.3-0.8mm
Forming Speed	12m/min
Power	4kw
Material of Shaft	45# steel with hard chrome plating
Material of Roller	High-grade 45# steel
Weight	4t
Material of lade cutting	Cr12 steel
Material Width	costomize
Dimension	7500*1650*1500mm
Effective Width	costomize
Shaft Diameter	70mm

Detailed Photos


Components and Characteristic
Decoiler
Decoiler loading frame can offer different type can choose. standard type are manual,can also choose electric loading frame or hydraulic loading frame. This loading frame decoiler also can use in other type machine, customer can buy it alone.
Guiding Device Features: Ensure smooth& precise material feed. Components: steel plate platform, two pitching rollers, position stopping block. The coil is guided in the correct position and passed to the roll forming equipment.
Forming System

Rollers: design by senior engineers with Auto-cad software, manufactured with CR15 high grade steel Shaft: 100mm manufactured Supporting frame: 350H steel to guide the forming station bearing basement The finished products will change if using different material and thickness. Driving of machine:by Gear box.
Hydraulic Cutting

Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. Power supply:Electric motor 11kw Hydraulic cut-off Frame: guide pillar Stroke switch: non-contact photoelectric switch Cutting after forming: cut the sheet after roll forming to required length Length measuring: automatic length measuring

Packaging & Shipping
Our Advantages
Company Profile
Zhongke is a manufacturer of tile press machines, we have many years of R & D, design and production of rich industry experience. Nowadays, our company has formed a complete modern management model with great product development and innovation ability. Our products are favored by global customers because of the lightweight structure, novel design and high degree of innovation.

After years of practical experience accumulation and industry experts design layout, Our company in product
production, sales, installation, commissioning and provide technical consultation of tile press has great advantages. Our factory is a modern enterprise with strong technical strength and production capacity. Our Company products rely on high quality and low price and good technical performance, in the customer base to harvest good feedback. And we can also according to user requirements for special design and manufacturing, at the same time in the production, installation, commissioning and maintenance of color steel equipment for users to provide one-stop service and technical guidance.

OUR ADVANTAGES
OUR PRODUCT
Qualification certificate

---
