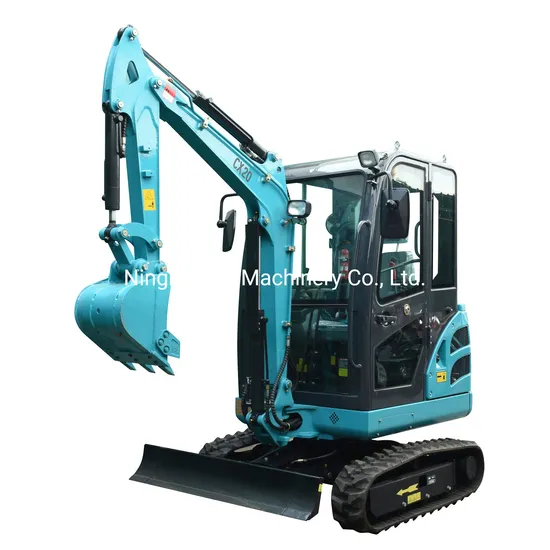

Cx-20 Series Mini Excavator New Small Crawler Hydraulic Excavators Machine

Product Description

Product Uses

Product Uses:

This versatile product is designed to excel in a wide range of applications, making it an ideal choice for farming, gardening, and orchard maintenance. It effortlessly tackles tasks such as ditching, fertilization, and small earthwork engineering, proving its effectiveness in various agricultural settings. Additionally, its adaptability extends to municipal engineering, road repair, and basement construction, showcasing its suitability for diverse urban projects. Features

Feature:

1. Excellent performance: The small excavator CX20 is equipped with advanced hydraulic system and power transmission technology, which provides excellent excavation and operation performance, and can quickly complete various tasks.
2. Flexible: This excavator adopts a compact design and has excellent maneuverability. It can easily enter small spaces for operations, and is suitable for urban construction and indoor projects.
3. Multifunctional attachments: CX20 supports a variety of attachments, such as buckets, log grabs, breakers, etc., which can be quickly replaced according to different work requirements to achieve a variety of operating functions.
4. Convenient operation: The equipment is equipped with advanced ergonomics, which is easy to operate and comfortable to operate, which reduces the fatigue of operators and improves work efficiency.
5. Energy saving and environmental protection: the small excavator CX20 adopts advanced energy-saving technology to reduce fuel consumption and exhaust emissions, which meets environmental protection requirements.
Specification

SPECIFICATION:

Operating system	Pi lot valve ope ration
Engine type	Japanese brand Yanmar 3TNV80,Euro 5 emission
Engine power	14.6KW
Operation Weight(Kgs)	2130kgs
Bucket capacity	0.06 m³
Arm rotatable or not	Rotatable
Operating system	pilot valve operation
Chasis	Retractable chassis system
Hydraulic oil pump brand	TAI FENG
Walking Motor	American Eaton 2-speed plunger motor

Whole Dimension	Specification	Operating range	Specification
Overall width	1215 mm	Arm Length	1260 mm
Overall height	2360 mm	Max Digging Reach	3793 mm
Overall length	3800 mm	Max Digging Depth	2154 mm
Mini ground clearance	230 mm	Max Digging Height	3050 mm
Ground contact length of track	1090 mm	Max Dumping Height	2217 mm
Track width	230 mm	Mini Swing Radius	1820 mm
Track gauge	820 mm	Rear Swing Radius	1048 mm

SCOPE OF USE:

Excavation engineering: small excavators are mainly used for excavating earthwork, stonework, deep excavation of foundation pits, excavation of channels, excavation of pools, etc.
Earthwork leveling: Small excavators can be used to level the ground, fill potholes, make roads, etc.
Foundation engineering: Small excavators are often used for excavating foundation pits, pouring concrete foundations, laying foundations for anti-corrosion, etc.
Underground water pipes: In urban construction, small excavators can be used for underground water pipes, such as water supply pipes, drainage pipes, gas pipes, etc.
Landscaping: Small excavators are suitable for landscaping projects, such as digging flower beds, planting forests, landscape stones, etc.
Other projects: When building and rebuilding, the excavator can be used for other walls, concrete structures of buildings, etc.
Mining operations: In the field of mining, small excavators can perform some fine operations, such as mining ore, cleaning ore piles, etc.
Farmland engineering: small excavators can be used for farmland irrigation canal excavation, field leveling and other agricultural operations.
Road construction: Mini excavators can be used for road construction, such as digging roadbeds, leveling road surfaces, etc.
River treatment: small excavators can be used to clean up rivers, repair embankments, dig drainage channels, etc.
Environmental engineering: In environmental engineering, small excavators can be used to dispose of garbage, excavate landfills, etc.

Package:

1,Exceptional Protective Performance: Wooden crate packaging provides excellent protection, effectively mitigating the impact of shocks, vibrations, moisture, dust, and other external factors during transportation. This ensures that the machine's performance and functionality remain uncompromised.
2,Moisture and Dust Resistance: Wooden crate packaging offers good moisture and dust resistance, preventing water, rain, dust, and other contaminants from entering the packaging and maintaining the excavator's appearance and mechanical components in optimal condition.
3,Ease of Stacking and Handling: Wooden crate packaging is often designed for easy stacking, maximizing storage and transportation space utilization. Additionally, the structure and weight of wooden crates facilitate straightforward loading and unloading processes, reducing handling complexity and risks.
4,Reusable: Wooden crate packaging typically boasts a longer lifespan, allowing for multiple reuse cycles and minimizing environmental resource wastage in alignment with sustainable development principles.


* With standard bucket ready for operation. Machine weight includes 75 kg operator.
* These values are measured under specific conditions at maximum engine speed and can deviate, depending on the operating status.
Detail Picture
DIG AND GO
Two-speed travel withautomatic shifting providesfaster transport speedsacross large work areas or tothe next job.
SMOOTH CONTROL Load-sensing hydraulicsystem efficiently managespower for multiple functions ,delivering smooth machinecontrol with
less effort.
MATCHING ACCESSORIES Can match different attachment foldifferent purposes including different sizebuckets ,hammers,qrapples

Package and sample

Exhibition

Certifications
Factory

Hot Products

CX10T	CX11A	CX11B
CX12	CX12-3	CX12-5
CX12-6	CX18	CX20

FAQ

1. Do you guarantee safe and secure delivery of products? Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

2. Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3. What is the average lead time? For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when we have received your deposit, and we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

---
