Rt300chcrawler Mobile Cone Crushing Plant

Product Description

Product Description The Runtianzhike crawler mobile counter crushing station has a compact and integrated design, with a small construction area. The crushing mainframe adopts new manufacturing technology and unique structural design, which results in a higher crushing ratio and stronger crushing capacity. The processed products are cuboid-shaped, with no tension or cracks, and have a good particle shape. The discharge particle size can be adjusted hydraulically, allowing for diversified crushing specifications. The entire machine is driven by tracks, with strong power and convenient transportation, making it suitable for complex and varied construction environments.
Application scenario: It is widely used in coarse crushing and medium crushing in various medium hardness crushing process.Crushing of all kinds of mine rocks; Highway, railway, water conservancy, electricity, construction and other industriesProduction of sand and stone for construction purposes; All kinds of slag, cave slag, waste asphalt concrete, tailings and waste rock crushing and recycling.

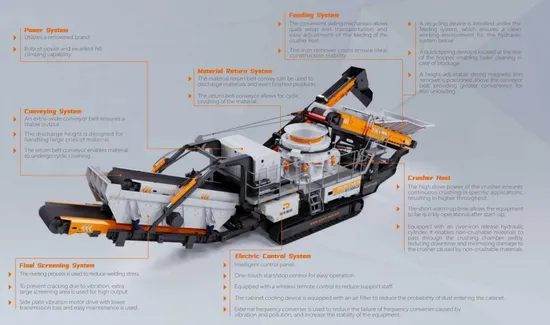

Detailed Photos
Product Parameters

RT300CH Crawler Mobile Cone Crushing Plant
Feeding Device	Max.feeding Size 210mm
	Feeding Height 3000mm
	Hopper Volume 3m³
	Feeding Capacity 350t/h
Crusher	Crusher Model HP300
	Crusher Motor Power 250kW
Main Conveying Belt	Belt Width B1000mm
	Power 11kW
Mixed Materia Conveying Belt	Belt Width B1000mm
	Power 7.5kW
Retumed Material Conveying Belt	Belt Width B650mm
	Power 5.5kW
Transmission Conveying Belt	Belt Width B500mm
	Power 3kW
	Motor Power 450kW
Power Device WholeMachine	Total Power 321kW
	Total Weigh 55t
	Working Mode Hybrid
	Working Dimension 18.1m×4.2m×5.2m
	Transportation Dimension 19.0m×4.2m×3.8m

---
