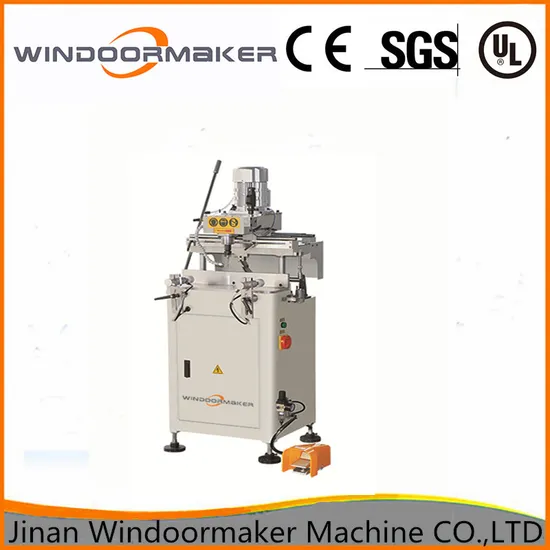

Single Axis Copy Router Aluminum Window Door Making Machine

Product Description

Product Description
Specification:
Used for milling production of all kinds of holes and slot in aluminum window and door. Guiding device for machine head vertical moving enhanced the milling distance and accurate position Linear bearing used in the level moving ensured the accurate position for hole/slot shape milling. High steel body with enhance design to ensure the stable working. Technical Parameter:

Power supply	Made to order
Operation air pressure	0.5~0.8Mpa
Motor power	1.1KW
Air consumption	30L/min
Milling cutter rotary speed	12000r/min
Milling cutter specification	φ5×60,φ8×80
Drill template specification	100mm×235mm(WxL)
Z axis vertical stroke	120mm
Dimension	880×700×1600mm(L*W*H)
Weight	220kg

Certifications

Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.


Machine at old customer


Packaging & Shipping

---
