Advanced Construction Machinery Hydraulic Pile Hammer with Vibro Technology

Product Description

Product Description

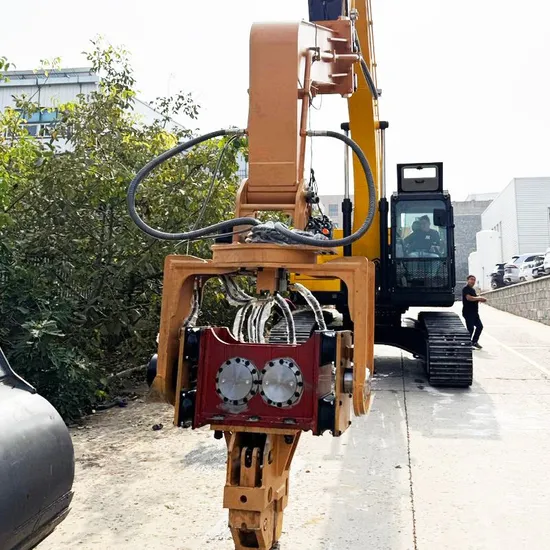

Detailed Photos

Hydraulic pile driver working principle and engineering application scope High frequency hydraulic vibratory pile driver is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam, building foundation etc. such short pile projects. Pile Driver Application The efficient of vibration pile method is higher than other methods. It is mainly are fit for driving and extracting sheet piles, I-steel piles, Cement square pile,cylinder pile, larsen piles in various shapes. This pile driving method is the most suitable for working in sand and poorer effect in the clay which must select higher power model machines.

Excavator use Juxiang S350 Sheet Pile Vibro Hammer Short Description: 1. Ideally suited for around 20-ton excavators, ensuring compatibility and efficiency.
2. Outfitted with a premium Parker motor and renowned brand bearing for superior performance.
3. Delivers robust and consistent vibrations up to 360KN, achieving a remarkable piling speed of 7.5m/min.
4. Built with a resilient main clamp, crafted through precise casting for enhanced durability.
The S350 harmonizes size, flexibility, and efficiency, rendering it perfect for a multitude of construction projects.

Product Parameters

Model	Unit	S350	S500	S600	S650	S800
Vibration Frequency	Rpm	3000	2800	2800	2700	2400
Eccentricity Moment Torque	N.M	36	52	70	83.5	126
Rated excitation force	KN	360	450	600	650	800
Hydraulic system pressure	Mpa	32	32	32	32	32
Hydraulic system flow rating	Lpm	250	240	315	310	310
Maximum pile length (m)	m	6-9	6-15	6-18	6-18	6-22
The auxiliary arm weight	Kg	800	800	900	900	1000
Total Weight	Kg	1750	2750	3200	3200	3600
Suitable Excavator	ton	18-25	27-37	36-50	42-50	50-70

Certifications
Packaging & Shipping
To ensure the utmost safety of your goods, we offer professional, eco-friendly, convenient, and efficient packaging solutions.
Packaging details: Export wooden box packaging or customized as per customer requirements.
Delivery Details: Shipping is typically completed within 20-30 working days post-payment.
We rigorously test each product before delivery to guarantee it meets our high standards. Our responsibility to our customers extends to safely loading the goods onto container trucks for transportation to the port.
Our Advantages
Our product is compatible with excavators from various brands, and we maintain long-term, stable partnerships with several renowned brands.
Pile Hammer How to Work?
The vibrating pile hammer employs high-frequency vibrations to exert high acceleration on the pile body. This vertical vibration disrupts the surrounding soil structure, decreasing its strength. As the soil liquefies, frictional resistance between the pile and the soil reduces. Utilizing the excavator's downward force, along with the vibrating pile hammer and the pile's weight, the pile is driven into the ground. When extracting the pile, the excavator's lifting force, combined with vibration, is used to pull out the pile. The required excitation force is determined by soil type, moisture content, and construction conditions.
FAQ
1. Q:How to chose the suitable model?
A: Please kindly advise your excavator weight or model, then we will help you to decide the suitable model.
2. Q: Is your vibro driver dangerous for work?
A: Our machine operate contact-free and there is no impact force on the drill rod, so our machine is not dangerous for work.
3. Q:Is your size can be custome made?
A:Yes, we can custom made according to your requests.
4. Q:Do you offer after-sale service?
A: Yes, we will offer you machine operation instructions. 6 months of warranty time for the motor will be offered to our customer dating from the receipt day. Besides, we will offer life long technical instruction.
5.Q:How To Order:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.

---
