Basic Info.
Applications
Industrial Grade PDA
Internet Connection
Built in Modem
Classification
Radio Frequency Identification
Front Camera
8MP, Fixed Focus
Rear Camera
16MP, Auto Focus
Capacity
5000mAh/3.8V/19.0wh
Transport Package
Pallet Carton with Gift Box
Specification
165mm*84mm*30mm
Production Capacity
30000 PCS Per Week
Packaging & Delivery
Package Size
20.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg

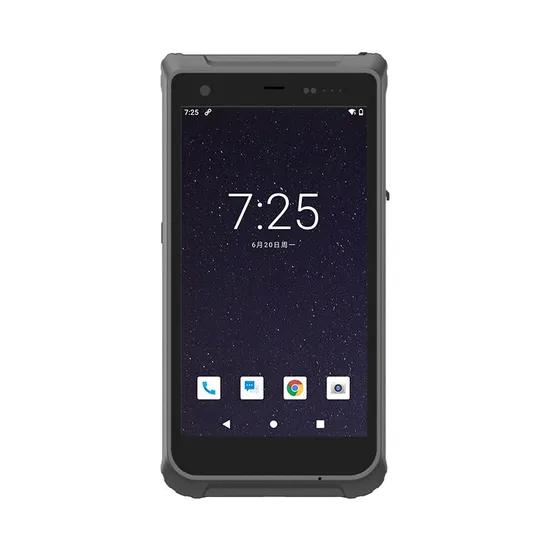

Product Description
Data | Specification |
Parameter | Materials | PC+ABS |
| Color | Black |
| Dimension | 165mm*84mm*30mm |
| Weight(Including battery) | About 0.37kg |
Communication mode | Network type | 4G/5G |
SIM card | Built-in card slot | Dual Nano-SIM card slot and TF card holder (Two-out-of-three card slot) |
4G/5G Module | Working bands | SA:n1/n8/n28 NSA:n41/n78/n79 TD-LTE:B34/B39/B40/B41 LTE-FDD:B1/B3/B5/B8 |
System Parameter | CPU | QCM4490 Octa-core, main frequency 2.4GHz |
| Memory | 6+128GB/(4+64GB optional) |
| Software | Android 13.0 |
Screen | Size | 5.5-inch |
| Type | IPS LCD |
| Resolution | 1080*1920 |
| Touch screen | 5-point touch, G+F+F, capacitive screen |
Button | Materials | PC+ABS |
| Number of digits | Left power button |
| Life | >2 million times |
Camera | Front camera | 8MP, fixed focus |
| Rear camera | 16MP, auto focus |
Interface port | Red light source interface | Default output power of 10mW |
| Optical power interface | Support multiple wavelength calibration points at 850/1270/1300/1310/1490/1550/1577/1625nm |
| LAN1 LAN2(2.5G) | Used for Ethernet speed test at 2.5Gbps |
| HDMI port | It can be used to simulate TV functions, supports 4K and is backward compatible with manual selection of different image quality levels such as 4K/1080P/720P |
| Smart Card Reader /Writer (Optional) | Supports simultaneous writing and reading of cards Card Slot Type: Supports contact-based cards compliant with ISO 7816 Supports SIM cards: 2FF single card or multi-in-one cards (2FF+3FF combo / 2FF+3FF+4FF combo) |
| NFC reader | Support ISO/IEC 14443 Type A/B |
| Earphone | 3.5mminterface port(USA type) |
| Type-C | Support USB3.0, supports charging and data transmission |
| OTG | Support |
| Wi-Fi 6 | Support IEEE 802.11.ax Speedtest |
| TF card | Up to 512GB |
Power Supply | Input | AC 100-240 |
| Output | DC 5V/2A |
| Line length | 1.5m |
Battery | Capacity | 5000mAh/3.8V/19.0wh |
Power waste | <10W |
Standby time | >80hrs |
Accessory | Power Supply | 1pc |
| User manual | 1pc |
Others | Protection level | IP65 |
| Working humidity | 20 % ~95 %(No condensation) |
| Atmospheric pressure | 86-106Kpa |
| Operating temp. | -20ºC~+55ºC |
| Storage temp. | -30ºC~+60ºC |
Company ProfileSince its inception in 1996, Shandong Kaer Electric Co., Ltd. has distinguished itself as a trailblazer in the provision of innovative intelligent terminals and comprehensive solutions tailored for both the Internet of Things and mobile Internet landscapes. Over the past two decades, the company has cultivated a robust foundation in research and development, mastering areas such as wireless communication terminal technology, wireless data terminal technology, identification technology, smart education application technology, Internet of Things technology, and cutting-edge video technology. These advancements reflect the company's commitment to pioneering excellence and innovation.
Shandong Kaer Electric Co., Ltd. prides itself on its full spectrum of product production qualifications, encompassing essential certifications like the telecommunications equipment network access license, the radio transmission equipment model approval certificate, and the China National Compulsory Product Certification Certificate. The company's diverse portfolio features two major product categories, divided into three series: smart communication terminals, IoT smart terminals, and bespoke solutions, including cutting-edge smart education terminals and solutions. This comprehensive product range showcases the company's dedication to delivering state-of-the-art technology and transformative solutions. FAQ1. Are you a MANUFACTURER?
Yes, we are founded in 2002, located in Weihai, Shandong , please watch our company introduction video at home page.
2. Do you support SMALL ORDERS?Yes, no matter how small the order is, we can accept it. After all, big orders start from small ones. We are very glad to grow with you.
3. Do you have CERTIFICATES?
Yes, we have CE, FCC, RoHs, EPR and WEEE certificates. lf you need other certificates, we can also assist you to complete them together.
4. What is your DELIVERY TIME?
In general, it need 30 business days, of course, the quantity and requirements of the order will also affect the delivery time, but we will treat each order with heart and do our best to deliver the goods for you as soon as possible.
5. what is your PAYMENT TERMS?
We support L/C, T/T, Western Union and Paypal.
6. Do you support CUSTOMIZATION?
Yes, we can customize packaging, logo, hardware and software. Please email us for more details. Please contact us for more information.
>>
