Basic Info.
Processing Accessory
Manual Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Toolpost
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001
Name
Cheap Price C6246 1500mm Center Turning Lathe Mach
Distance Between Centers
1000/1500/2000mm
Tool Post Type
4-Way Toolpost
Transport Package
Wooden Case
Specification
C6246 China manual gap bed metal cutting lathe
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
275.00cm * 112.00cm * 162.00cm
Package Gross Weight
2050.000kg
Product Description

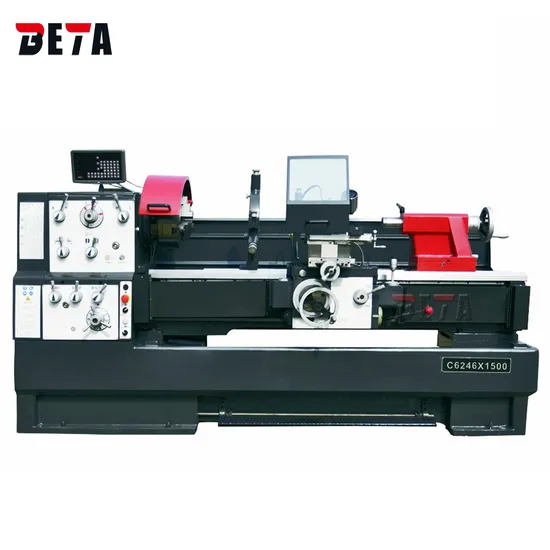

C6246 China manual gap bed metal cutting lathe
Features:
1.The spindle system is high in rigidity and accuracy.
2.The design of the main drive is optimized and the gears in the headstock are precision ground.
3.The noise of the machine is low.
4.The lathe machine can turn about 200 kinds of metric, inch, module and D.P. threads.
5. Automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe and reliable pedal braking device providing quick and effective stop while operating.
| Model | C6246x1000/1500/2000mm |
| Max. swing over bed | Φ460mm |
| Max. swing over cross slide | Φ270mm |
| Max. swing over gap | Φ690mm |
| Valid length of gap | 165mm |
| Distance between centers | 1500mm/2000mm |
| Width of bed | 300mm |
| Max.section of tool | 25×25mm |
| Cross slide travel | 285mm |
| Spindle bore | Φ58mm |
| Spindle nose | D1-6 |
| Taper of spindle speed | MT7 |
| Range of spindle speed | 12 steps 25-2000r/min |
| Leadscrew pitch | 6 mm or 4T.P.I. |
| Range of metric longitudinal feeds range | 0.031-1.7mm/rev (42 kinds) |
| Range of inch longitudinal feeds | 0.0011"-0.0633"/rev (42 kinds) |
| Range of metric cross feeds | 0.014-0.784mm/rev (42 kinds) |
| Range of inch cross feeds | 0.00033"-0.01837"/rev (42 kinds) |
| Range of metric threads | 0.1-14mm (41 kinds) |
| Range of inch threads | 2-112 T.P.I.(60 kinds) |
| Range of Diametrical pitch | 4-112 D.P. (50 kinds) |
| Range of module pitches | 0.1-7 M.P.(34 kinds) |
| Dia. of tailstock sleeve | 60mm |
| Travel of tailstock sleeve | 130mm |
| Morse taper of tailstock sleeve | MT4 |
| Power of main motor | 5.5kw |
| Power of coolant pump | 0.1kw/ 3PH |
| Overall diamension(L*W*H) | (1500mm): 2750x1080x1370mm |
| (2000mm): 3250x1080x1370mm |
| Packing size(L*W*H) | (1500mm):2800x1120x1620mm |
| (2000mm): 3300x1130x1560mm |
| N.W/G.W | (1500mm): 1810/2115kg |
| (2000mm): 1965/2295kg |
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units. Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
>>
