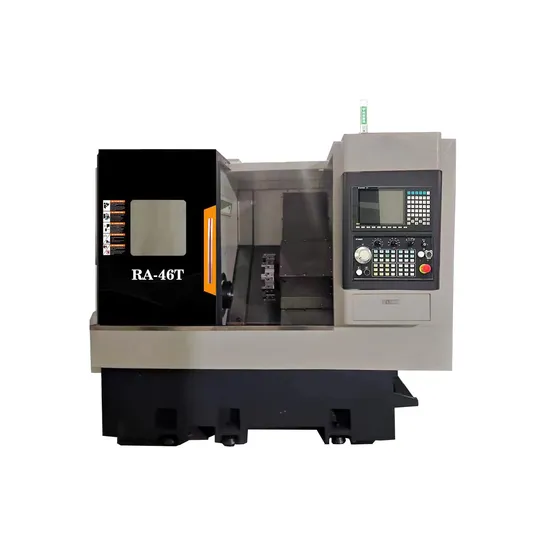

Versatile Slant Bed CNC Lathe Turning Machine Tool Manufacturer for Sales

Product Description

Presenting our cutting-edge Automated Vertical CNC Drilling Lathe featuring a precision-engineered slant bed. Designed for unmatched accuracy and superior efficiency, this innovative machine is revolutionizing manufacturing capabilities.
Product Description

Processing Capability			Unit	RA-46T
Processing Capability	Maximum bed swivel diameter		mm	Φ420
	Maximum machining diameter		mm	Φ300
	Maximum machining diameter on the tool holder		mm	Φ126
	Maximum processing length		mm	300
	Maximum bar through-hole diameter		mm	Φ46
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-5
	Spindle through-hole diameter		mm	Φ56
	Maximum spindle speed		rpm	4500
	Hydraulic cylinders/chucks		Inch	6''
Axis feed	Axis travel	X-Axis	mm	450
		Z-Axis	mm	350
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
	Rail Type		/	Linear track 30 (ball)
Turret	Number of tool positions		pcs	80-12T
	OD tool holder specifications		mm	20x20
	I.D. Tool Holder Specifications		mm	Φ20

Product sample

Packaging & Shipping

FAQ
1. What are the Payment Terms?
A: We accept T/T payments. To secure your order, a 40% initial deposit is required, with the remaining 60% balance due before shipment.
2. What are your trade terms?
A: Our flexible trade terms include FOB, CFR, and CIF, allowing you to choose the most convenient option.
3. When is the delivery time?
A: For our standard Automated Vertical CNC Drilling Lathe, delivery is guaranteed within 30 days. Custom or special machines may take longer. Please refer to our delivery schedule when placing your order.
4. What is your minimum order quantity and warranty?
A: The minimum order quantity is just one set, and we provide a robust one-year warranty.
5. How are the machines packaged?
A: Each machine is securely packed in a strong wooden case to ensure it arrives in pristine condition.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for your needs. You can also select the model yourself.
Alternatively, send us your product drawings, and we will determine the ideal machine configuration for you.

---
