Factory Price Cold Milling Width 2m Portable Asphalt Milling Machine for Road Construction Use

Product Description

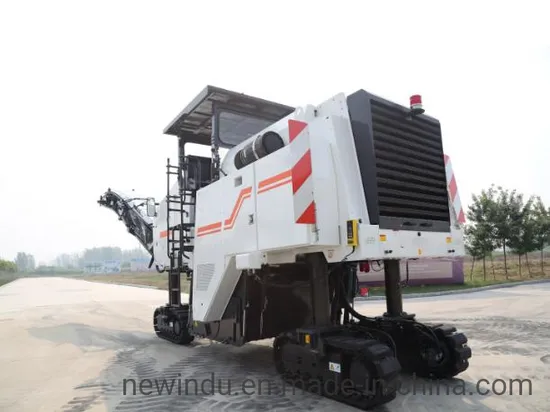

Factory Price Cold Milling Width 2m Portable Asphalt Milling Machine For Road Construction Use
Products Description The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Performance and characteristic
• Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.
• Compact three-wheeled machine with front-wheel drive .The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.
• The front steering driving axie has large steering angle and small turming radius ,can mill along the manhole covers.
• The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.
• The imported hydraulic elements have high working reliability.
• Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.
• Hydraulic handheld breakers and rumble strip equipment can be selected.

Product Paramenters

Description	Unit	Parameter value
Milling width	mm	1000
Milling depth	mm	300
Cutter spacing	mm	15/18
Number of cutters		100/80
Diameter of rotor (Including cutter)	mm	930
Manufacturer		Shangchai
Cooling type		Water cooling
Model		SC9DK220G3
Rated power/2,200rpm	kW	162
Emission standard		China-III
Maximum working speed	m/min	45
Ground clearance	mm	180
Fuel tank	L	450
Hydraulic oil tank	L	130
Water tank	L	860
Machine dimensions (L×W×H)	mm	4837×2546×3745
Maximum working mass	kg	16800
