ABA 3layers Biodegradable Polyethylene Polythene Film Blown Extruder with Good Supervision of Product

US$35,000.00

1-2 Sets

US$34,000.00

3-4 Sets

US$32,000.00

5+ Sets

Basic Info.

Model NO.

SJ-50X2FM800, 1000, 1200.1500

Maximum Folding Width of Film

600-1500mm

Screw Diameter

50*2/55*2

Automation

Automatic

Computerized

Machine Weight

10T

Certification

CE, ISO9001:2008

Material

HDPE. LDPE, Biodegrade, PLA

Film Width

800/1000/1200/1500mm

Screw Material

Bimetalic High Speed Screw

Die Head.

ABA Three Layers

Air Ring

Double Lips Air Ring

Speed

100-120kgs/H

Rewinder

Automatic Cutting and Change Roll

Motor Brand

Siemens Brand

Inverter

Delta Brand

Electrical Parts

Schneider

Power

3p/380V/415V/220V

Transport Package

Standard Wooden Box, etc.

Specification

CE, ISO

Trademark

SANBI

Origin

China

HS Code

8477301000

Production Capacity

100-180kgs/H

Product Description

ABA 3layers Biodegradable Polyethylene Polythene Film Blown Extruder with good supervision of product
Specification :
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home.
Technical parameter:

Model	ABA 1200	ABA 1700
Screw Diameter	Ф50×2	Ф60×2
Screw Ratio L/D	30:1	30:1
Screw Speed	15-120r/min	15-120r/min
Main Motor Power	18.5Kw×2	30Kw×2
Extrusion Output	100-120kg/h	180kg/h
Range of Die	ABA Ф250 For LDPE	ABA Ф350 for LDPE
Single-sided Thickness of Film	0.02-0.12mm	0.02-0.12mm
Max. Folding Width of Film	1200mm	1500mm
Electric Total Capacity	50Kw	80kw
Overall Dimension	6000×3500×6500mm	7000×4000×8000mm
Weight of Machine	8T	12T

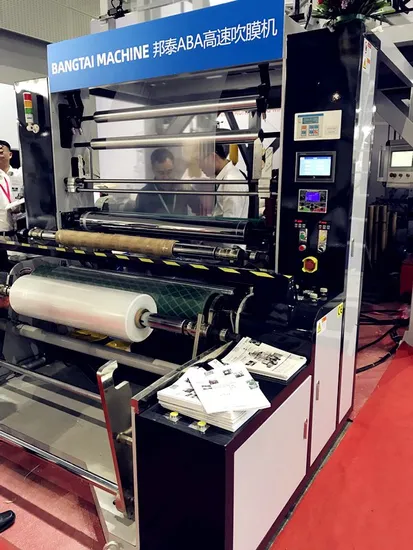

Machine pictures
