X5036 Vertical Manual Metal Milling Machine Manual Mills Vertical Milling Machine Price

Product Description

Product Description

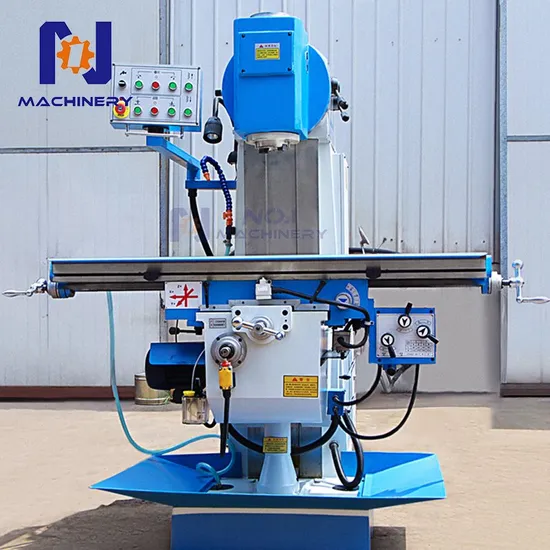

X5036 Vertical Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular cutters, formed cutters and face metal milling cutters. When mounted with the index, the machine will be able to perform milling operations in gears, Cutter, helix groove, cam and tub wheel.Vertical milling head can be swiveled by ±45°, Spindle quill can be moved in vertical.The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. It has the large working table, a set of cantilever for electric button and a longitudinal handwheel in front of the table, So the machine can be easy to operate. Working table and slide ways adopted quality cast hardened ensure high accuracy.

Specification

item	value
Table Travel (X) (mm)	1000
Number of Axes	3
Machining Capacity	Medium Duty
Table Travel (Y) (mm)	360
Table Travel (Z) (mm)	400
Range of Spindle Speed(r.p.m)	60r.p.m - 1700r.p.m
Condition	New
Place of Origin	Shandong
Brand Name	no.1
Model Number	X5036
Table Travel (mm)	1000*360*400
Year	2024
Type	VERTICAL
Spindle Motor Power(kW)	4
Voltage	380V/50HZ
Dimension(L*W*H)	1700*1680*1880
Weight (KG)	2200
Warranty	2 years
Key Selling Points	Competitive Price
Applicable Industries	Building Material Shops, Manufacturing Plant, Energy & Mining
Showroom Location	Australia, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	2 years
Core Components	Motor, Pump, Gear, Engine
Standard Configuration 1	X/Y Axis Automatic Tool Feed
Standard Configuration 2	Integration Action Panel
Standard Configuration 3	Manual Oil Pump
Standard Configuration 4	Z Axis Electric Lift
Machine Tool Accessories 1	Milling Chuck
Machine Tool Accessories 2	7:24 Middle Set
Machine Tool Accessories 3	Horizontal Milling Arbor Assembly
Machine Tool Accessories 4	Single-head Spanner
Machine Tool Accessories 5	Anchor Bolts
Machine Tool Accessories6	Double-head Socket Wrench

Detailed Photos
· Powerful Tool Milling Machines;· Milling machine for tool construction;· Automatic feeds on all 3 axes;· Outer arbor supporting for horizontal milling;· Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;· Steamlined arrangement of operating controls on the right side;· Vertical head quill for drilling, with hand lever feed;· Quill stroke 80mm;· Central lubrication;· Hardened guideways;· The milling machine can be enquipped with Digital Position Indicator.
