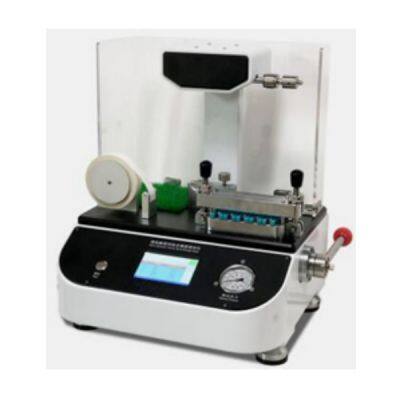

BGT-01 Internal Bond Tester
Application
BGT-01 Internal Bond Tester is used to measure the energy required to rapidly delaminate a test piece of paper or board. The Rupture of the test piece in the “Z” or thickness direction is initiated by a pendulum having a defined mass, moving at a defined velocity.
The test is suitable for both single- and multiply papers and boards, including coated sheets and those that are laminated with synthetic polymer films. It is particularly suitable for papers and boards that may be subjected to z-direction rapid impacts, impulses, or shock loads during printing or conversion.
BGT-01 Internal bond Tester has wide application in single and multi-layer paper and board, including coated paper and those covered with a synthetic polymer, board like case board, whiteboard, grey board, ivory board, etc.
Standard
ISO 16260, TAPPI T569, GB/T 26203, QB/T 5558
Benefits
1. Pendulum Automatic Release
2. Resolution: Data acquisition resolution of 0.001 lbf/in², equipped with a high-precision 5000-pulse encoder
3. Self-Calibration: Special 5-level calibration tool kit (additional accessory)
4. Unit Switching: Switchable between J/M2 and lbf/in²
5. Human-Machine Interface: 5.0-inch color touchscreen operation, real-time display of test data
6. Software: Optional computer connection software for document processing,
7. Printing Output: Modular integrated thermal printer
Main Parameters
| Sample Size | 25.4*25.4mm (Five Groups) |
| Sample Holding Force | 0~400N (Adjustable) |
| Sample Pressure Range | 0~65kg/cm² |
| Impact Angle | 90° |
| Resolution | 0.001lbf/in² |
| Measuring Range | A: 0-500J/M² |
| B: 500~1000J/M² |
| C: 1000~1500J/M2 |
| Indication Error | A: ±1J/M² B: ±2J/M² C: ±5J/M² |
| Unit | lb-ft/in², J/M² |
| Dimensions | 450m×380cm×600mm |
| Power | AC 220V 50Hz |
|
|
| Sample cutter specification |
| Sampling Size | 25.4mm*140mm |
| Parallelism Of Two Long Sides | ≤0.015mm |
| Sampling Thickness | (0.05~1.2) mm |
| Dimensions | About 580*150*620mm |
| Weight | About 15kg |
>>
