Big Price Reduction High Precision Bench Lathe Power Head

Product Description

1.CNC Machining Cutting Machine Aluminum Milling Center Product Description
DESCRIPTION
Machine tool features The main shafts all adopt wide-area high-torque spindle motors with outstanding advantages such as wide constant power range, large output torque, low noise, maintenance-free, high speed, and low failure rate. Cooperating with the high-rigidity integrated spindle unit, the heavy-duty cutting capability of the machine tool has been greatly improved, and the output torque of the spindle is twice that of ordinary models. The main structure of the machine adopts modularization, a strong and closed box structure design, with good overall rigidity and strong heavy-duty cutting capability X/Y axis heavy-duty roller linear guideway.
FEATURE
FEATURE
1. Adopt Taiwan HIWIN or PMI line rail, and the width of the Y and Z axis rails is up to 45mm.
2. The ultra-wide base is as stable as Mount Tai.
3. The double-layer arm structure of the force column increases the rigidity by 1.5 times.
4. The X-axis sliding seat has a super-large span, and the "herringbone"-shaped column design is as stable as Mount Tai.
5. The three-axis adopts Taiwan's external diameter 40mm C3 grade screw rod, and the three-axis adopts NSK original bearing (3062), which is pre-tensioned to prevent thermal displacement.
6. High rigidity BT spindle, ring spray design.
7. The machine tool parts belong to the famous brand of famous factory, and the top configuration in the industry.

FEATURE

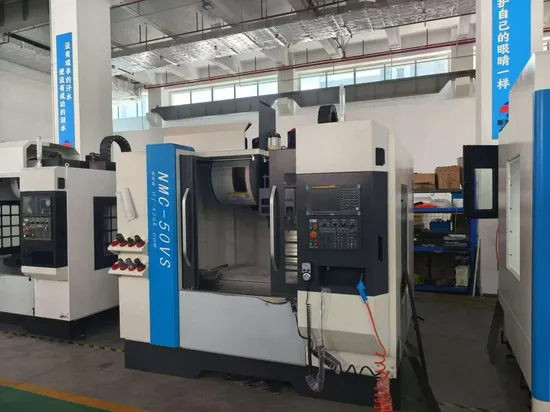

Item	Specification	Unit	NMC-50VS	NMC-70VS
Travelling	X/Y/Z axis	mm	800/550/550	1300/700/730
	Distance between spindle end to worktable	mm	120-670	180-910
	Distance between spindle center to vertical column guideway	mm	590	795
	Guideway type		Roller guide rail	Roller guide rail
Worktable	Worktable size(L*W)	mm	1000*550	1400*700
	Max worktable loading	kg	800	1200
	T slot	No/mm	5-18×90	5-18×150
Spindle	Spindle taper(Model/install size)	mm	BT40	BT40
	Spindle speed	rpm	10000	10000
	Spindle drive type		belt	belt
Feed	X/Y/Z axis fast feed	m/min	36/36/36	24/24/24
	Max cutting feeding	mm/min	10000	10000
Tool magazine	Tool change way		Side-mounted mechanical arm	Side-mounted
	Handle Specifications	type	BT40	BT40
	Tool capacity	tools	24	24
	Max.tool diameter (adjacent tool)	mm	80	80
	Max. tool diameter (without adjacent tool)	mm	120	120
	Max.tool length	mm	300	250
	Max.tool weight	kg	7	8
	Fastest tool change time(T-T)	sec	2	2
Motor	Spindle motor	kw	7.5/11	11/15
	Three axis servo motor	kw	1.8/1.8/3	3.0/3.0/3
Accuracy	Positioning accuracy	mm	±0.005	±0.006
	Repeat positioning accuracy	mm	±0.003	±0.003
Power	Power requirements	kva	20	30
	Air source requirements	Kg/cm	6~8	6~8
Machine	L*W*H	mm	2600*2400*2550	3729*2435*3020
	Weight	t	5.5	9.0

MAIN ACCESSORIES

No.	Name	Qty.	Manufacturer	Remark
1	CNC Control System	One set	FANUC	FANUC-OI-MF plus
2	Spindle servo motor	One set	FANUC	Β iI12/10000
3	X,Y,Z servo motor	Each for one set	FANUC
4	Spindle front bearing	One group
5	Spindle rear bearing	One group
6	X,Y,Z axis bearing	Each for one set	NSK
7	X,Y,Z axis ball screw	Each for one set	HIWIN/PMI
8	X axis liner guideway	Two pcs	HIWIN/PMI	45
9	Y axis liner guideway	Two pcs	HIWIN/PMI	45
10	Z axis liner guideway	Two pcs	HIWIN/PMI	45
11	Spindle Unit	One set	Taiwan	BT40
12	Tool magazine	One set	Taiwan	24
13	Cutting fluid pump	One set	Shanghai	4-60-750W
14	Automatic lubrication system	One set	Japan	2L
15	Knife cylinder assembly	One group	Taiwan
16	Main pneumatic components	One set	AirTAG
17	main electrical components	One set
18	Spindle belt	One group	GATES
19	X,Y,Z shaft coupling	Each for one set	NBK
20	Heat exchanger	One set	Chinese

STANDARD ACCESSORIES
STANDARD ACCESSORIES

1	24 disc tool magazines	9	Electric cabinet heat exchanger
2	Workpiece Cooling System	10	Network transmission and CF card function
3	Automatic lubrication system	11	Rigid tapping
4	Spindle blowing device	12	Fully enclosed protective cover
5	Working light	13	Foundation screws and pads
6	Tri-color warning light	14	Tools and Toolboxes
7	cleaning air gun	15	Iron chipping disc and chip storage box
8	Spindle output water	16	Portable chip blowing air gun

RANDOM DOCUMENTS LIST

No.	Name	Qty.	Specification and remark
1	Packing list	1
2	Certificate of Inspection	1
3	Machine Tool Mechanical Manual	2
4	Machine Tool Electrical Manual	2	With electrical schematic
5	CNC System Certificate/Guarantee	1
6	System factory parameter table	1
7	CNC system data	2	Operation/programming/maintenance/parameters
8	Tool Magazine User Manual	1
9	Automatic Lubricating Device Manual	1

WORKING CONDITION AND SERVICE
2.WORKING CONDITION AND SERVICE MACHINE TOOL ENVIRONMENTPower supply: 3-AC 380V±10% 50Hz±1Hz Altitude: ≤1500m
Ambient temperature: 5~45° Relative humidity: ≤85%
Environment: no harmful and corrosive gas, liquid, dust; no strong vibration, strong magnetic field, strong radiation MACHINE TOOL ACCEPTANCE CRITERIA AND PROCEDURES 1. Precision of machining center: check and accept according to relevant national standards GB/T18400-2010 or Q/XZ03-2015 (for checking geometric accuracy, working accuracy, standard cutting test pieces, etc.).
2. Check and accept according to the relevant technical agreement, factory documents and configuration list signed by both parties.
3. For the machine tool with special configuration, the acceptance is divided into two parts: pre-acceptance and final acceptance:
Pre-acceptance: In accordance with the relevant content of the technical agreement and the manufacturer's factory inspection documents, the manufacturer and the user will jointly conduct an acceptance check at the manufacturer's factory, and both parties will sign and approve the acceptance, and the equipment is ready for delivery; for those that the user cannot come to the manufacturer for acceptance , can be regarded as approved pre-acceptance;
Final acceptance: at the site of use by the user, after installation and commissioning by the manufacturer's personnel to the user; the user provides the necessary general tools for installation and commissioning, and the main content of acceptance is to check the goods according to the factory documents, packing list, and accuracy test report , geometric accuracy testing, machine tool run-in verification, etc., and sign the final acceptance report after passing the test. FACTORY
3.FACTORY WORKSHOP & CUSTOMER FACTOR

CUSTOMER FACTORY
CUSTOMER FACTORY
Company strength
4.Company strength
Nanjing XinZhe CNC Machine Tool Co.,Ltd. was established in 2007. Located in Guabu CNC Industrial Park, Liuhe District, Nanjing, the company is mainly engaged in the research and development, manufacturing, technical consulting, sales and service of CNC machine tools, intelligent equipment and intelligent manufacturing systems.
The company's main products include vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, vertical lathes and various special machine tools, intelligent manufacturing production lines, and intelligent manufacturing workshop planning and construction, and many other kinds of CNC products..
In addition to the production base in Nanjing, the company has established branches in Chongqing and Guangdong.

CNC Solution for Metal Cutting Industry
The company insists on being customer-centered and constantly innovating. From the standard vertical, horizontal, and gantry processing centers, it gradually develops a variety of high-efficiency and labor-saving automatic special machine tools and production lines to meet the processing needs of customers. Customers are spread all over the country and abroad to many countries.The company has independently developed special machines and automated
production lines for full CNC parts machining, and has made major breakthroughs in leading companies of the industry such as SINOSTEEL, SINOTRUK, and Fuhua Heavy Industries.
The company adheres to the corporate tenet of "attitude determines everything, quality makes the future", carries forward the spirit of innovation and excellence, builds a positive, dedicated and loving team, serves customers with heart and soul, and produces high-quality products!
