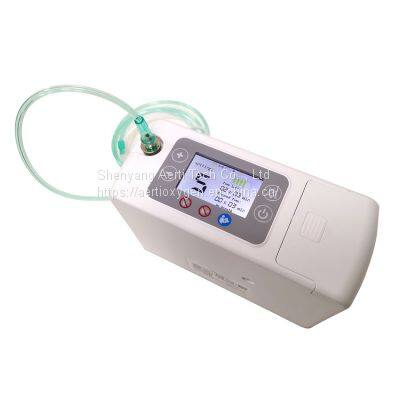

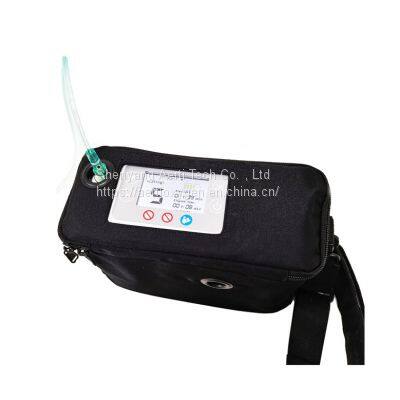

New APOC-5 Oxygen Concentrator uses PSA Gas Separation Technology and France imported CECA molecular sieve. The portable oxygen concentrator is with novel structure, pulse type, very small and smart and elegant, it is easy to carry (only 2.35kg) and operate, which are powered by battery and AC power adapter and DC power adapter. They are mostly used for both car, home use, outdoor, field trips for health care and the needs of various groups of people at different levels.
Model
| APOC-5
|
Power Requirement
| AC power adapter: 100~240V 50~60Hz
DC power adapter: 12~24V
|
Internal Battery
| Nominal Voltage 14.4V;
Nominal Capacity 6800mAh;
Battery Energy 98wh
|
Endurance Time
| Up to 4.5 hours
|
Charging Time
| Direct charging in the machine: 7 hours
Charge with dock charge:4 hours
|
Whole Machine Power
| 5 gears running charging state 75VA
5 gears running without battery 55VA
1 gear running without battery 21VA
|
|
|
|
Display Screen
| 3.2"FT
|
Noise
| | Net Weight
| 2.35KG (Including Battery)
|
|
|
|
Size
| 225*90*165mm
|
|
|
|
Oxygen Outlet Pressure
| Oxygen Outlet Pressure
|
Oxygen Purity
| 90%-96% V/V
|
Rate Flow
| Pulse dose delivery system; five flow setting:1-5
|
Effective Breaths/Minute
| 10-40 times
|
Inspiratory Trigger Pressure
| ≤0.2 cm H2O
|
