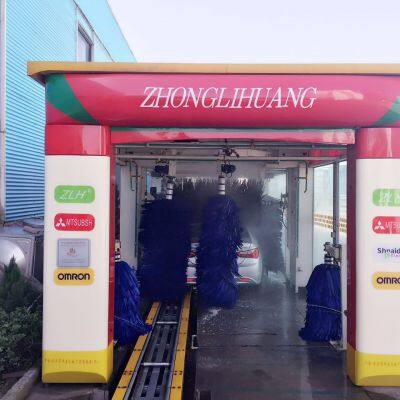

Equipment name: Tunnel type seven brush car washing machine
Specification and model: DXC（B）-741
1. Car washing machine dimensions: length 10500mm x width 3800mm x height 3100mm, conveyor length 10870mm.
2. Washable vehicle dimensions: length 5500mm x width 2000mm x height 2000mm.
3. Electricity standard: three-phase five wire/380V/50Hz, total power of 37.61Kw (or 26.76Kw for imitation fan).
4. Car washing speed: 60 vehicles/hour, adjustable.
5. Compressed air pressure: 0.7Mpa.
6. Single car wash power consumption: approximately 0.6 kWh/vehicle (or approximately 0.4 kWh/vehicle for the imitation fan).
7. Single car wash water consumption: about 120L/vehicle; Configure water circulation at approximately 15L per vehicle.
8. Cleaning brush set: one top brush, four side brushes, two skirt brushes, using foam bristles.
9. Control methods: unmanned control management system, PLC intelligent automation control system, human-machine interface control management system, button assisted control.
10. Cleaning method: the tunnel frame structure is adopted, and the vehicle is transported forward by the conveyor belt, and the profiling brushing and high-pressure water washing, foam liquid decontamination and coating wax coating cleaning modes are carried out.
11. Adopting fixed four fan units (or imitation form four fan units, top imitation form lifting fan, side fixed fan), controlled by an automatic vehicle drying system, with a drying rate of up to 92%, equipped with a single machine power of 5.5Kw (or top 2.2Kw fan, side 3Kw fan), Shanghai Hudi's new high-efficiency energy-saving fan with high air volume, high air pressure, and low noise.
12. Whole machine structure: The whole machine structure is designed in accordance with national safety standards, and the steel grade meets national standards. The whole machine frame is made of high-quality Q235 galvanized steel according to national standards, which has been treated with rust removal, anti-corrosion and baking paint technology.
13. Equipment electrical standards: All electrical components of the entire machine comply with national electrical safety specifications, with an electrical protection level of not less than IP65 and an insulation level of not less than Class B, and have CE and CCC certification certificates.
Main FeaturesSense water spraying automatically
Spraying automobile detergent automatically
Cleaning rim automatically
Wax spraying automatically
Copying dryer automatically
Sewage treatment system to purify, circulate and save
