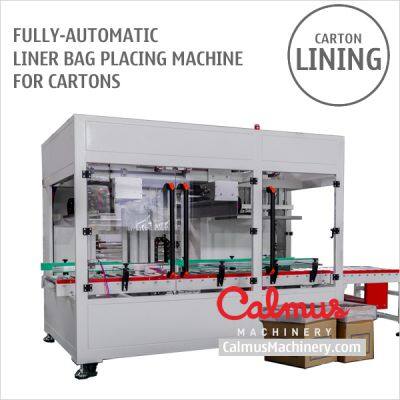

Fully-automatic Carton Liner Placing Machine
Carton liner placing machine for inserting bags in boxes by one each. This China-made fully-automatic liner placer cuts and seals film as a bag from a roll stock, inserts it in an erected carton, opens and cuffs the bag over the carton top flaps, blows air to extend the bag to fit the internal wall of box better. The liner bag placing machine reduces labor and material costs, is simple to operate and easy to adjust.
This is an ideal machine for bulk box packaging of bread rolls, edible oil and fat, fruit and vegetable, granules and nuts, meat and fish, caps and closures, golfs and other. It will be more efficient and save more labor if this liner placer works with a carton erector as the combination can be an automatic lined carton forming line.
Specifications:
Inserting capacity: 6-7 cartons/min
Film width: 460-840mm
Applicable carton dimensions: L250-550*W200-400*H150-40 0mm, also can be customized
Power supply: 3 phase, 4.5 kW
Compressed air: 6 bar
Air consumption: 100 NL/min
Machine dimensions: L3322*W2177*H2350mm (for reference only)
We are also able to manufacture high-speed carton liner placing machine with 12 cartons/minute.
>>
