Hospital Use Medical Equipment LED Medical or Operating Light with Surgical Camera System

Product Description

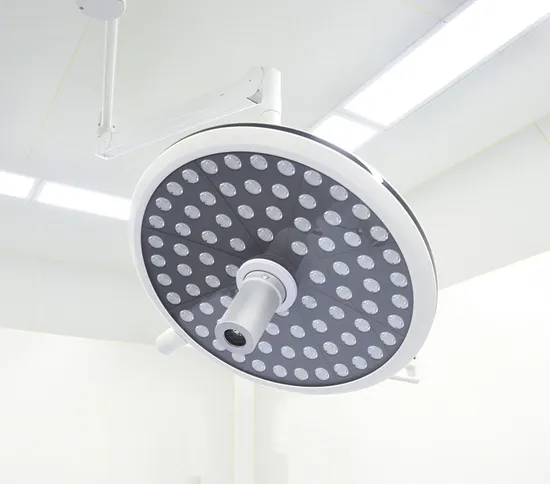

LED-700/700D LED surgical light
High efficient and durable OSRAM LED light source without thermal radiation
Easy to use color temperature and brightness adjustment, uniform adjustable spot technology
Excellent and efficient optical and unique light source module design, can be equipped with a variety of sizes of controller
It can be configured with external / central control camera system, gesture sensing, handheld wireless remote control, shading compensation and other new functions Three lighting modes
Three Lighting Mode suit for various operation with different lighting requirement
Uniform Adjustable Light Spot
Multi layer spot overlapping technology, central focusing device, clear operation field Excellent light source module design
Lamphead with 80/48pcs LED light source, which are divided into multiple light source groups
Excellent lighting collecting technology (lens focusing agnle is reasonable), Excellent light efficiency
Each group light source is controlled by CPU independently, if any group light source is broken, the light can still use
Internal Light Source Structure: Engineering Plastic ABS + Aluminum Board, good heat dissipation and lighter weight
Color Temperature and Brightness Easy Adjustment
Color rendering index ≥ 90, near to real color as soon as possible
Stepless PWM dimming to satisfy brightness requirement for different surgery
Reasonable quantity and distribution design of high low color temperature light source, which achieve 4000-5000K color temperature adjustment
Easy Practical Operation
Soft Light with Eye Protection
Controllers for your optional
2.4 inches push button controller with easy usage
Mutual Control for Both Lamp Head
Both lamphead controller can control mutually each other`s color temperature, endoscope, camera and others ( knob dimmer have no this function)
Optional HD Camera System
Surgical Light can be equipped with built in camera or external camera system
PWM technology, perfectly solving stroboscopic problem of the camera system
Remote consultation, remote teaching, large-screen conference, etc. can be realized via the Internet and operating process can be recorded at the same time
Optional Gesture Sensing
Sensor to recognize gesture, achieve non-contact brightness adjustment, more convenient and faster
Optional Shadow Compensation
Humanized intelligent shadow compensation technology
When surgeon`s head is near to the light source, other light source will automatically compensated brightness to ensure the ideal light beam on the operating field
Optional Handheld wireless remote controller
Using LoRa modulation technology, encryption wireless transmission, safe and reliable
Transimission distance is not less than 20meters, it can realize remote control with surgical light
Stable Structure, Easy Install and Usage
Adjusted with removable sterilizer handle with bear 134ºC
Balance arm of surgical light with square arm, lamp head can be pulled down vertically, and easy to rotate and adjust
Features · High efficient, durable, and non-radioactive OSRAM LED light source.
· High efficient and unique design for optical component.
· Uniform and adjustable light-spot control.
· Easy control of color temperature and luminance
· High-definition without splash camera screen system optional
· One button to enter endoscope illumination mode

Technical Parameter	SD-M7-1	SD-M5-1	SD-M5L
Supply Votage	110-240V	110-240V	110-240V
Power	80W	48W	48W
Light Spot Diameter (mm)	120-250mm	120-250mm	120-250mm
Luminance	40000-180000Lx	40000-160000Lx	40000-160000Lx
CRI Ra (%)	≥96%	≥96%	≥96%
Diameter of The Lamp Head	700mm	500mm	500mm
Color Temperature	4000K-5000K	4000K-5000K	4000K-5000K
LED Life	50, 000 hrs	50, 000 hrs	50, 000 hrs
LED Source	Osram LED Light	Osram LED Light	Osram LED Light
Frequency	50-60HZ	50-60HZ	50-60HZ
Ilumination Range	≥800mm	≥1000mm	≥1000mm
Standard Installation Height	2600mm- 3200mm	2600mm- 3200mm	--
Brightness Adjustable Range	1%-100% continuously	1%-100% continuously	1%-100% continuously

---
