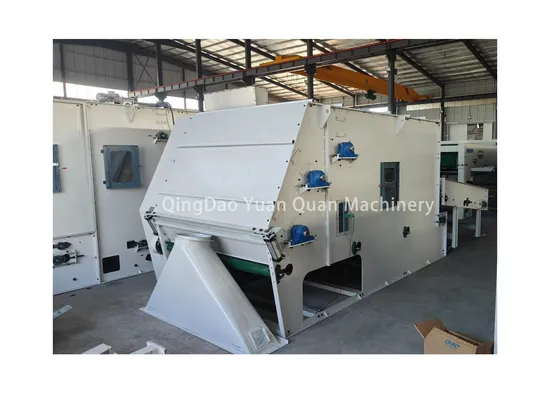

Non Woven Machine Blending Machine with Three Rollers

Product Description

Product Description

After weighing various bales of fibers and raw materials electronically, they are fed into the flat curtain and conveyed to the main mixing bin, then they are mixed by three opening rollers at high speed, and then the fiber raw materials are conveyed by the conveying fan with the right amount of air volume for later work. The fibers and raw materials after opening and mixing by this machine have good effect and are mixed evenly for carding. Product Parameters

Model		YQ-1600-3HM	YQ-1800-3HM	YQ-2000-3HM	YQ-2200-3HM
Working width		1600mm	1800mm	2000mm	2200mm
Output		250-400kg/h	300-450kg/h	350-500kg/h	400-550kg/h
Dimension		4500*2100*1900mm	4500*2300*1900mm	4500*2500*1900mm	4500*2700*1900mm
Weight(kg)		1600	1800	2000	2200
Feeding method		Electronic Weighing/lengthening Leather Curtain	/	/	/
Open-loose roller form		Welded fin type (angle welding)	/	/	/
Opening roller diameter		270mm(not including fins)490mm including fins	/	/	/
Cotton fan impeller		Aluminum	/	/	/
Power	Feeding motor	1.5kw(Inverter control)	1.5kw(Inverter control)	1.5kw(Inverter control)	1.5kw(Inverter control)
	Opening roller motor	7.5kw(Industrial frequency control)	7.5kw(Industrial frequency control)	7.5kw(Industrial frequency control)	7.5kw(Industrial frequency control)
	Blower motor	4kw(Inverter control)	4kw(Inverter control)	5.5kw(Inverter control)	5.5kw(Inverter control)

FAQ
(1) Q: Are you a manufacturer or agency?
A: We are a professional manufacturer specialized in producing textile machine for more than 20 years, the production ability is up to 800 sets/ mouth. We have our own International Trade Department, so that we can better understand customer's needs and offer a reasonable price.

(2) Q: Is the price offered changeable?
A: Of course, we offer reasonable price and the price is changeable according to purchasing amount. cchanchangeable according to purchasing amount.

(3) Q: How about the quality?
A:The main subassembly are supplied by large companies from Japan, south Korea or German. Key parts are research and design by ourselves.

(4) Q: How about the after-sale service system?
A: Our engineers available to service overseas to provide professional technical support.

(5) Q: Are you available for on-the-spot invitation?
A: Of course we do welcome to visiting our company and have a face-to-face communication to advance mutual business.
Company Profile
The company pays special attention to the research and development and utilization of related technologies. At present, it has a number of well-known technical experts in the domestic and foreign industries, and has built a firs class R&D team, and has successively conducted technical exchanges with major domestic and foreign equipment manufacturers. The animal fiber carding products have more than 20 intellectual property patents and soft works. The production models are all CE certified products, and it is an intellectual property management system certification enterprise.

---
