Various Food Fish Tomato Drying Type Industrial Fruit and Vegetable Dryer Machine

Product Description

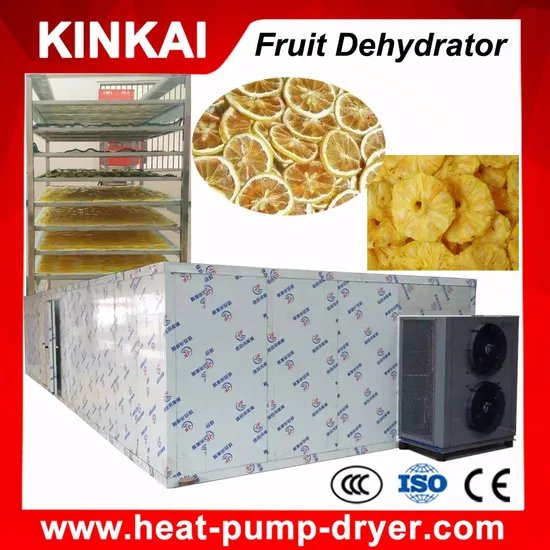

KINKAI Industrial Fruit Dehydrator Introduction
KINKAI third generation heat pump dryer type fruit dehydrator is a device that transfers heat from a colder area (ambient temperature) to a hotter area (drying chamber) by using mechanical energy, as in a refrigerator.
Cycle hot air assures uniform drying and high efficiency.
How Does It Working?
1, Dryer evaporator of refrigerant absorb the air from outside
2, then compressor works that make the air temperature rise
3, heat exchanger change the hot air into drying chamber
4, final fruits will be dried by the hot air circulating in drying chamber
Functions:
Heating drying max temp 75C
Cooling drying min temp 8C
Heating +dehumidify drying
Technical Parameters

Single Dryer + Drying Chamber
Model	Unit	JK03RD	JK06RD	JK12RD
Power Input	KW	4.8	8.5	15
Power Supply	V/PH/HZ	380V/3PH, 50/60HZ	380V/3PH, 50/60HZ
		220V/1PH, 50/60HZ
Rated Current	A	9.6A(380V), 22A(220V)	17	30
Heating Capacity	KW	10.5	21	42
Cooling Capacity	KW	7.8	18	32
Dehumidify	L/H	12	25	50
Max. Temperature	ºC	≤75	≤75	≤75
Working Condition	ºC	0-43	0-43	0-43
Electric Shock Protection Grade		I	I	I
Max. Exhause Pressure	Mpa	3	3	3
Noise	dB(A)	75	75	75
Power Consumption/ H	KWH	4.8	8.5	15
Electric Heater	KW	3	6	12
Blowing Type	/	Horizontal Blowing 360ºC
Dimension Of Dryer	MM	1675x860x1280	1760x1060x1280	2120x1360x1590
Weight	KG	295	385	540

Double Dryers + Drying Chamber
Model	Unit	JK03RD (x2)	JK06RD (x2)	JK12RD (x2)
Power Input	KW	9.6	17	30
Power Supply	V/PH/HZ	380V/3PH, 50/60HZ	380V/3PH, 50/60HZ
		220V/1PH, 50/60HZ
Rated Current	A	19.2A(380V), 44A(220V)	34	60
Heating Capacity	KW	21	42	84
Cooling Capacity	KW	15.6	36	64
Dehumidify	L/H	24	50	100
Max. Temperature	ºC	≤75	≤75	≤75
Working Condition	ºC	0-43	0-43	0-43
Electric Shock Protection Grade		I	I	I
Max. Exhause Pressure	Mpa	3	3	3
Noise	dB(A)	≤75	≤75	≤75
Power Consumption/ H	KWH	9.6	17	30
Electric Heater	KW	6	12	24
Blowing Type	/	Horizontal Blowing 360ºC
Dimension Of Dryer	MM	1675x860x1280	1760x1060x1280	2120x1360x1590
Weight	KG	295x2	385x2	540x2

KINKAI Heat PUmp Fruit Dehydrator Features 1, Energy saving
Adopt heat pump technology, absorb heat from air and recovery waste heat at the same time
Adopt close dehumidify + circulating drying type, saving operating cost;

2, Exact control temperature and humidity
The drying temperature can be easily controlled by PLC +Touch Screen control system.

3, Uniform drying
By using the forced ventilation function, there are partition sheet and fan motors inside the drying chamber to make sure hot air cycle, so the raw materials can be dried evenly

4, The temperature: 10-75°C, Max 75°C, similar nature drying.

5, The baking plate dimensions and materials can customize as customer request.

6, Good drying quality.
During drying, the material does not craze, does not distortions, non-discoloring, never degenerate, non-oxidize, drying completely, with good rehydration, keep nutrient content;

7, Safe and reliable operation
Automatic intelligent control, 24-hour continuous drying; Without waste gas and waste heat pollution,low noise

Recommend Dryer+Drying Chamber Sizes

Description			Drying Chamber Size (Can Be Customized)
Single JK03RD Dryer + Drying Chamber			4000*2000*2200mm
Single JK06RD Dryer + Drying Chamber			6000*2800*2200mm
Single JK12RD Dryer + Drying Chamber			6000*3000*2200mm
Double JK03RD Dryers + Drying Chamber			7000*2000*2200mm
Double JK06RD Dryers + Drying Chamber			10000*2800*2200mm
Double JK12RD Dryers + Drying Chamber			10000*3000*2200mm

Our company
Our Customers
Our Services
A. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need. B. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.

---
