Product Description
Product Description
Wood Charcoal Briquette Machine/Charcoal Machine
1. introduction of charcoal briquette machine
Our wood briquette machine can make wood briquette of different diameters and different
shapes from sawdust, wood branches, biomass, ago-forest wastes and so on.This is the most important step to make BBQ Charcoal.
2. raw material request of charcoal briquette machine
Sawdust size: 3-5mm
Sawdust moisture: 8%-12%
3. details specifications of charcoal briquette machine
Model No.
| TZB-1
| TZB-2
| TZB-3
|
Output
| 150-200kg/h
| 200-250kg/h
| 260-350kg/h
|
Main Motor Power
| 11kw
| 15kw
| 18.5kw
|
Electrical Heater Power
| 3X1.5kw
| 3X1.5kw
| 3X2kw
|
Dia. of Briquettes
| Ø40 Ø45 Ø50 mm
| Ø40 Ø45 Ø50 mm
| Ø40 Ø45 Ø50 Ø70 mm
|
Machine Weight
| 320kg
| 350kg
| 400kg
|
Machine Size
| 1650*600*1260mm
| 1860*800*1360mm
| 1900*600*1700mm
|
Density of Briquettes
| 1.2-1.4T/CBM
|
4. we can supply you the full line to make wood charcoal:
1.you should make sure the size of your wood be 3-5mm,or you will need the crusher;
2.you should make sure the humidity be under 12%,or you will need the dryer;
3.we can provide wood briquette machine,tell me how many kgs/h you want;
4.If you want to get wood charcoal,you will also need the carbonization oven.

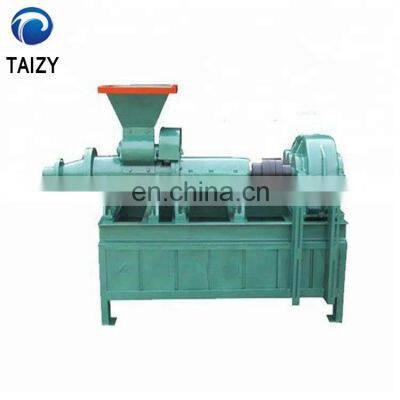

5. wood briquette machine picture
If you are interested in our machines,Please contact me at any time :
