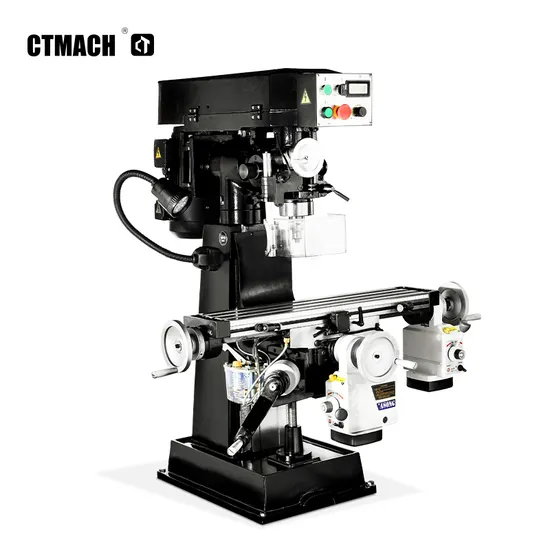

X28 Drilling Milling Machine, Mini Turret Drilling and Milling Machine

Product Description

Drilling diameter	28 mm
End milling diameter	16 mm
Face milling diameter	63 mm
Spindle speed change method	variable
Spindle speed range	100~600 / 425~2500 rpm
Rotate head left and right	±45°
The milling head rotates around the column	360°
Workbench	660x156mm
T-slot	14mmx3
Worktable X-axis travel	350 mm
Worktable Y-axis travel	160 mm
Worktable Z-axis travel	280 mm
Spindle sleeve stroke	80 mm
Maximum distance between spindle end and worktable	310 mm
Distance from spindle axis to column	165 mm
Spindle taper	MT3
Motor Power	1500 w
Machine size	1075×1100×1200mm
Package Size	1000×865×1260mm
Net weight/gross weight	263/350KG
Base cabinet size	720×450×560mm
Base cabinet net weight/gross weight	35/36kg

Features
Mini turret drilling and milling machine, can be used for drilling, milling and tapping.
Elevating workbench, high precision. Milling head can tilt ±45° , 360° rotation, convenient for special workpiece and Angle processing. Inverter motor, variable speed, low noise, with manual oil pump, working light. X.Y axis automatic feed. CE standard power off protection. Three-axis dovetail guide fine grinding and scraping, 1.5KW
3-phase high-power motor, 220V input.
Size/Weight
The appearance/package size of the product is measured manually, and there is a small error. It is normal, and the specific object shall prevail.
Machine package size 1000x865x1260mm
Net weight/gross weight of machine(excluding floor cabinet)263/350KG
Net weight/gross weight of ground cabinet35/36KG
Identification
A. Downfeed Selector
B. Control Panel
C. Motor
D. Fine Downfeed Handwheel
E. LED work light
F. Longitudinal Limit Stop Track
G. Longitudinal Handwheel
H. Longitudinal (X-Axis) Handwheel
I. Cross Feed Handwheel
J. Oiler
K. Vertical (Z-Axis) Crank Handle
L. Automatic Tool Feed
M. Splash Pan
N. Cabinet
Product display
Detailed introduction
Spindle stepless speed regulation
L: 100 - 600 rpm H: 425 - 2500 rpm
A. Power Lamp: Lights when there is power to the machine.
B. Direction Switch: Controls the direction of spindle rotation.
C. Digital Speed Readout: Displays the spindle speed in revolutions per minute (RPM).
D. Speed Dial: Controls the spindle speed.
E. E-Stop Button: Turns the spindle OFF. You must twist this button clockwise so that it pops out before
restarting the spindle with the ON button.
Note: Pressing this button DOES NOT dis-connect the mill from power.
F. ON Button: Turns the spindle ON when there is power to the machine and the stop button is not pushed in.
Standard Accessories(Attached in Machine)
Drill chuck, drill chuck key, reducer sleeve, connecting rod, oil pot, return cutter, hex wrench,T bolt

---
