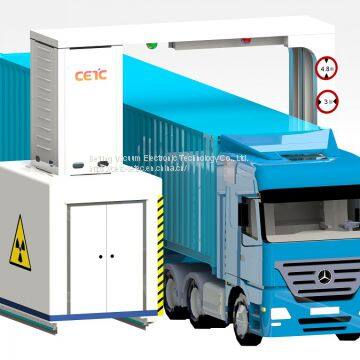

BVE-6000P Portal Type Vehicle Inspection System(Beijing Vacuum Electronic Technology Co., Ltd.)：
BVE-6000P drive-through portal container security inspection system applies x-ray radiation imaging technology to acquire images of different density substances inside the container, so as to realize the scanning & imaging inspection of the container. It can effectively identify the contrabands hidden in the trunk, container interlayer, etc., such as weapons, explosives, drugs, smuggled goods, etc.
The vehicle drives directly through the scanning channel at a speed of less than 15 km/h and the system automatically avoid to scan the cab, which realize quick check without unpacking the vehicle. And it is 100% safe for people. The system function of automatic operation and fast passing, which can reduce the need for manual inspection. The scanning process is simple and it avoids traffic congestion. Drive Through type, could realize Fast Scan for container, truck.
High Efficiency: Pass rate up to 120 vehicles/hour.
High Accuracy: Strong Penetration, clear image, high accuracy, could solve the problem of big error and low efficiency in manual inspection.
Intelligence: If the hazardous article or suspicious are found in the scanning, the system will alarm automatically.
Safety: The system automatically avoid scanning the cab and security check is safe for people.
Long Time Working: Could work 24 hours one day in all weather.
Flexibility: We provide customized service. Design and manufacture according to client's requirements.
With so many technology advantages, BVE-6000P could be widely used in customs, border control, ports, logistics, transportation hubs, highway checkpoints and other inspection fields.
Basic Parameters
|
Tunnel size:
| 4.0（W）× 5.0（H）[m]
|
Max. Vehicle Size could be inspected
| 3.0（W）× 4.8（H）[m]
|
Scanning Speed
| 15 km/h
|
Pass Rate
| 120 vehicles/hour
|
X-Ray Generator and Detector
|
Linear Accelerator
| 6/3 MeV, sealed water bath
|
Beam Direction
| From Side
|
Detector
| L shape high-sensitivity detector
|
For Vehicle Inspection System: Customized Design Provided!
>>
