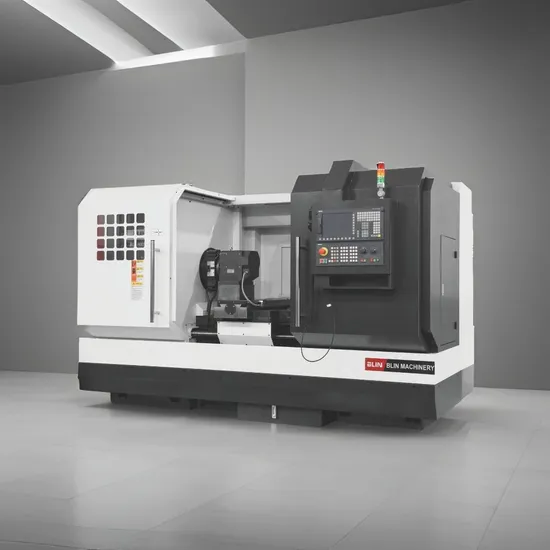

China Top Quality Heavy Duty Flat Bed CNC Lathe (BL-HK63B/80B)

US$38,000.00-43,000.00 1 set (MOQ)

Basic Info.

Model NO.
BL-HK63B/80B
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Guideway Width
560mm
Max. Swing Dia. Over Bed
630/800mm
Max. Turning Dia.
Φ630/500, Φ740/610mm
Center Distance
1000/1500/2000/3000mm
Spindle Bore
105mm
Spindle Head Type
A1-11
Spindle Speed
3 Class Gears H:112~1120 M:37~373 L:20~210rpm
Spindle Motor
11kw
Chuck Size
Φ315mm
X/Z Axes Positioning Accuracy
0.026/0.032(1000), 0.040(1500, 2000, 3000)mm
X/Z Axes Repeatability Positioning Accur
0.007/0.009(1000), 0.014(1500, 2000, 3000) mm
Transport Package
Wooden Case
Specification
630/800*1000/1500/2000/3000mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
500 Units/Year

Packaging & Delivery

Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

Product Description


- Adopt China best high strength compound resin sand cast iron
- Aging treatment,has good vibration absorption and rigidity
- Guideway hardened by ultrasonic frequency and precise ground, good precision keeping
- Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force
- Adopt 3 class Integral gear box type spindle,big bore,high rigidity,suitable for heavy turning
Details:
Item Specification Unit BL-HK63B BL-HK80B
Capacity Guideway width mm 560
Max. swing dia. over bed mm Φ630 Φ800
Max. swing dia. over slide mm Φ360 Φ500
Max. turning dia.
(vertical 4T/horizontal 6T tool turret)		 mm Φ630/500 Φ740/610
Center distance mm 1000/1500/2000/3000(vertical 4T tool turret)
900/1400/1900/2900(horizontal 6T tool turret)
Max. Workpiece weight kg 1200(standard);1500(max.)
Spindle Spindle bore mm Φ105
Spindle head type / A1-11
Spindle speed rpm 3 class gears
H:112~1120 M:37~373 L:20~210
Spindle motor kw 11(servo)
Spindle max. torque Nm 1265
Chuck size / Φ315(manual 3-jaw chuck)
X/Z axes X axes travel mm 370 390
Z axes travel mm 760/1310/1810/2810(vertical 4T tool turret)
660/1210/1710/2710(horizontal 6T tool turret)
X/Z axes motor kw 1.4/2.5(FANUC)
X/Z axes rapid speed m/min 6/7
X axes ball screw O.D./pitch mm Φ40/5
Z axes ball screw O.D./pitch mm Φ50/8(1000,1500mm);Φ63/8(2000,3000mm)
Tool post Tool turret type / Vertical 4/Horizontal 6 station
Tool shank size mm 32×32,Φ32
Tailstock Tailstock quill dia. mm Φ100
Tailstock quill travel mm 250(150 for hydraulic tailstock&6 station tool turret)
Tailstock quill taper / MT5#
Accuracy X/Z axes positioning accuracy mm 0.026/0.032(1000),0.040(1500,2000,3000)
X/Z axes repeatability positioning accuracy mm 0.007/0.009(1000),0.014(1500,2000,3000)
Turning workpiece roundness mm 0.004
Others Total power KVA 30
N.W. kg 4600/5100/5600/6100 4800/5300/5800/6400
Overall size(L×W×H) mm 3550/4000/4500/5600×2000×1850 3700/4100/5000/5600×2000×2000


Main parts list:
Item Brand
Spindle bearing CHINA top-CSC/ZWZ
Ball screw bearing CHINA top-CSC
Ball screw CHINA top
Lubrication pump JAPAN-LUBE

Standard configuration: - FANUC 0i TF CNC Controller
- Manual chuck
- 4 station tool post
- Manual tailstock
Optional configuration: - SIEMENS 808D/GSK980TDi
- Hydraulic chuck
- 6 station tool turret
- Hydraulic tailstock
- Steady rest
- Follow rest Other models Choice:
