Color Steel Selflock Cuadro Irregular Texturado Decorative Cladding Wall Panel Forming Machine

Product Description

Product Description
The Color Steel Selflock Cuadro Irregular Texturado Decorative Cladding Wall Panel Forming Machine is a highly advanced and efficient solution for producing high-quality steel decoration wall panels. Here are its key selling points:
Versatile Production: Creates metal interior wall cladding, great wall panels, and decorative fluted steel sheets.
High-Quality Materials: Works with aluminum and steel for durable, stylish finishes.
Precision Roll Forming: Ensures consistent, high-quality panel profiles.
Efficient & Customizable: Ideal for modern architectural and interior design projects.
Durable & Aesthetic: Perfect for both functional and decorative applications.
Detailed Photos
Product Parameters
Working Process
Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table

Raw Material	Coil Type	PPGI,PPGL,GI
	Width	600mm
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	7.5KW Servo Motor
	Cutter power	4kw
Forming speed		20-30m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		18 mm Welded Steel Middle Support Plate
Forming shaft		70mm solid shaft with heat treatment
Material Of Rollers		High Grade 45# Forged Steel/ CR12
Forming stations		27 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision
Transmission Way		Chain drive 1 inch (Double Chain)

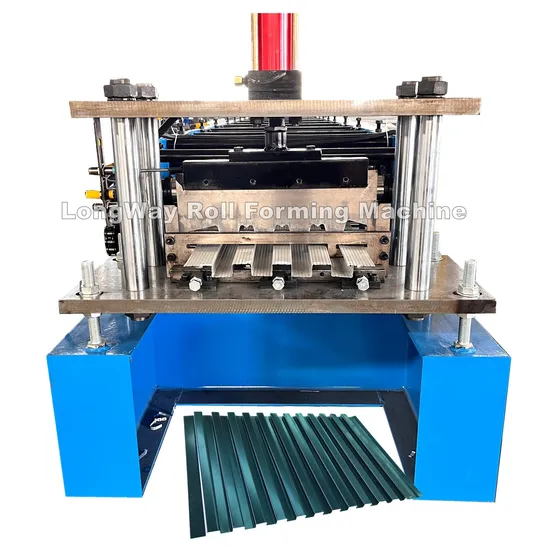

Type of cutting		Hydraulic Pillar type and length-set cutting
Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		13.8m×1.5m×1.2m
Total weight (Approx)		8.6T

Installation Instructions
Metal Cuadro Standing Seam Wall Roof Panel Laminas Roll Forming Machine are widely used in both interior and exterior applications to enhance aesthetic appeal and provide durability. Common uses include:
Interior Walls: Adds a modern, sleek finish to residential, commercial, and industrial spaces.
Exterior Facades: Improves building aesthetics while offering weather resistance and protection.
Partitions and Dividers: Creates stylish and functional room separators in offices, hotels, and public spaces.
Ceilings and Feature Walls: Elevates design with unique textures and patterns for visual impact.
Retail and Hospitality Spaces: Enhances branding and ambiance in shops, restaurants, and hotels.
Public Infrastructure: Used in airports, metro stations, and other high-traffic areas for durability and low maintenance.
These panels combine functionality with design versatility, making them ideal for modern architectural projects.
Packaging & Shipping
Anti-Corrosion Protection: Spraying anti-corrosive oil on rollers to prevent oxidation during shipping, ensuring long-lasting performance.
Oxidation Prevention: Wrapping the entire machine with isolation film to safeguard against oxidation during transit.
Cost-Effective Shipping: Optimized space planning to minimize transportation costs for customers.
Secure Transit: Properly fixed and secured to prevent any damage during transportation, ensuring the machine arrives in perfect condition.
Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping

---
