Animal Feed Processing Farm Agricultural Sludge Dewatering Machine

Product Description

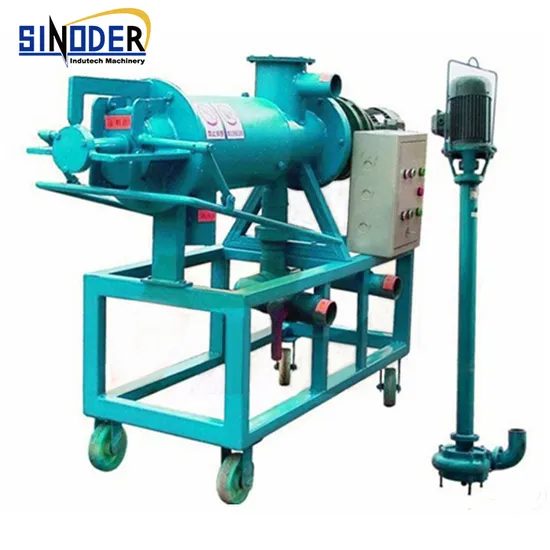

Brief introduction of animal manure dewater machine /Solid liquid separator
Animal manure dewater machine( cow dung, chicken manure, pig manure ect) use the pump to pull the fresh fowl manure, cow dung, etc. into dewater equipment , the material through the screen and then press by the screw , the rotary speed of the machine can reach 45r/min , within the press of the screen and high rotary speed , the material will be dewatered by the machine , and the water will enter into the pool through screen. . after this machine , water contain in manure is less than30- 35%
Working principle of animal manure dewater machine /solid liquid separator
The machine receives the material to be separated and conveys it using the screw conveyor inside the separator casing. The liquid phase is separated through the mesh of the cylindrical screen which encloses the screw conveyor. Along its path toward the exit, the material gradually separates progressively the less linked liquid and then the more strongly linked liquid until a plug of almost dry material has formed before the outlet. The plug is continuously expelled through the outlet diaphragm.The machine will automatically find its balance of squeezing force depending on the material. Consequently, it can be used for a wide range of materials without the need for any manual adjustments.
Main technical parameter

Model	CT200	CT280
Power	380V	380V
Size	1900*500*1280mm	2200*800*1300mm
Weight	510kg	680kg
Filter screen dia,	20cm	28cm
Submerged pump feed diameter	76mm	76mm
Discharge mouth diameter	76mm	76mm
Sewage drains diameter	108mm	108mm
Spiral diameter	194mm	274mm
Motor rotate speed	1440	1440

---
