US$5,000.00-50,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Spray Booth, Air Spray Equipment
Airflow Direction
Cross-flow Type
Paint Mist Treatment
Dry-type
Application
Wood Spraying Equipment
After-Sales Service
Local/Online
Inside Size(mm)
7000X4000X3000
Outside Size(mm
8300X4100X4500
Front Door(mm)
3000X2600(Wxh)
Cabin System
50mm EPS with Double 0.326mm Steel
Air Intaking
2X1.5kw Cooling Fan
Air Exhausting
2X3kw Axial Fan
Ceiling
40mmx60mm Square Tube
Lighting System
4 Tubes X 8 Teams X 36W
Heating System
3kw X 8 Groups Short Infrared Lamps
Purification System
Water Curtain
Material
Galvanized or Stainless Steel
Advantage 1
Air Balanced Ceiling Frame
Advantage 2
Air Flow Adjustor
Voltage
Can Be Customized
Transport Package
Export Container /Pallet /Disassembly with Carto
Production Capacity
300000m/Month
Product Description
Note:
For furniture painting room, the size is customized according to user's place. So there is no standard size. The following size is just one of our models.
For filter type, there are 2 kinds, wet type and dry type. Wet type is filtered by water curtain, and the dry type is filtered by filtering paper. You can choose according to your prefer.
We introduce wet type-filtered by water curtain in the following:
Model NO.
400 | |
| Inside Size(mm) | 7000x4000x3000 | Outside Size(mm) | 8300x4100x4500 | Front Door(mm) | 3000x2600(WxH) | Total Power | 33kw |
| Cabin System | 50mm EPS panel, double 0.326mm steel with tongue and groove structure; The watching window is with 5mm white glass. Aluminum alloy hinge and extraposition bolt. One fold person door, size is 1800mmx750mm, with mechanical pressure lock and 5mm glass window. |
| Ventilation System | 2 sets 1.5 kw high efficiency top fans for supplying, air capacity is 36000 m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating. |
2 sets 3kw axial flow fan, air capacity is 40000 m3/h.
|
| Ceiling | Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with δ=0.8mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating. |
| Lighting System | 4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance>=800Lux. The protection glass is 5mm white glass. And the box is bending by δ=0.8mm galvanized steel with powder coating. |
| Heating System | Standard 3kw x 8 groups of fixed short infrared lamps on both sides, total is 24kw. |
| Purification System | Pre-filter, ceiling filter, fiberglass filter, activated carbon filter. |
| Electric Controlling System | High quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & baking switch, light switch, emergency stop, breakdown alarm, etc. |
| | |
different kinds of water curtain, can be customized according to your need
The following 3 pictures shows the water curtain with water pump.
The following pictures show the water curtain without water pump, the water come up by a fan.

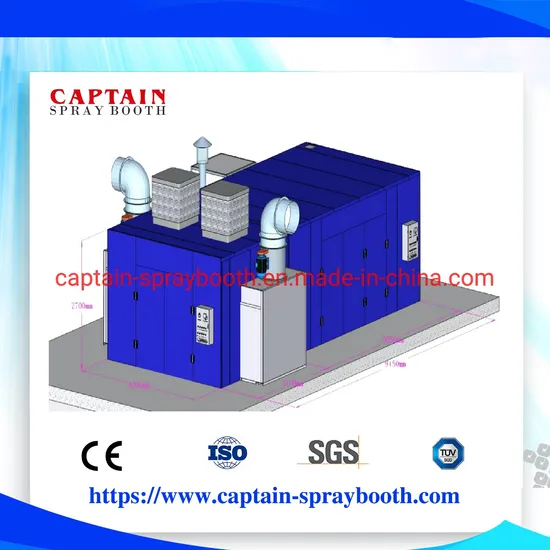

basic draw
production
package and delivery
installation
our workshop
factory view
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
>>
