Automatic CNC Panel Bender Press Forming Folder Edge Folded Robot Arm Servo Hinge Tool Carbon Sheet Metal Aluminium Cabinet Door Electric Bending Machine

Product Description

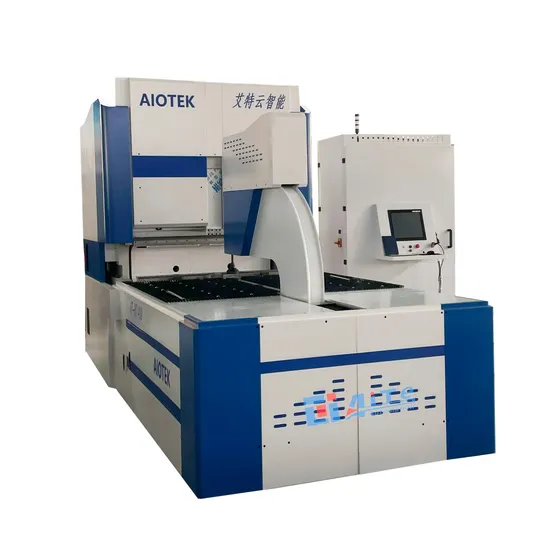

CNC Panel Bender AT-S2000Our full Electric SERVO CNC Intelligent and flexible bending center(SERVO CNC panel bender, SERVO CNC Press brake) is designed for high efficiency, energy-saving , low-noise, high-accuracy, less labor, improve its precision, reliability and durability.
1) Bending Process Introduction and DemonstrationAT-S2000Our automatic panel bender can bend max. 2mm thickness carbon steel sheet flexibly , After 3 years of technical research, our company's R&D center has developed servo flexible bending center with cutting-edge technologies. The speed is only 0.2 second per bending motion. The equipment can automatically bend up and down according to the bending programming to achieve an arc, The combination of flattening bending and various angles saves a lot of labor and tool costs for processing.Bending center machine has below outstanding merits : 1. Simple bending program and easy to understand, operate,flexibly and easily complete various complex bending workpieces.
2. Fast and convenient ,high degree of auotmation with manipulator,
high precision of processing.
4. Obviously Save a lot of labor and tool costs in processing than the traditional press brake .
5. SERVO systems for energy saving and high efficiency .
6. Bending length upto 250mm ,bending height up to 190mm

Technical Parameters	Unit	Model
		AT-S2000
Feeding Structure		Pressure Arm Type
Bending Length	mm	2000
Maximum Bending Height	mm	170/240/280
Minimum Bending Height	mm	4
Min. Inner Size of Four-side Bending	mm	140x260
Min. Inner size of One-side Bending	mm	140
Minimum Arc Radius	mm	1.2
Minimum Continuous Bending Speed	s	0.2
Bending Angle	degree	-90~90 0~180 Carbon Steel
Axes Controllable	standard	customzied
Maximum Feeding Speed	M min	120
Equipment Size	mm	5100x3200x2300
Total Power	KW	61
Average Power	KW	6
Workbench Structure		Brush and Rolling Bead
Speed Adjustment		Standard
Advanced Command		Standard
Arc Command		Standard
Loading Robot Interface		Standard
Vacuum Pump		Standard
Hinge Tooling	normal	Standard
	servo	option

Product Paramenters Main functions:1.four-side bending;
2.one-side bending;
3.continuously bending up and bending down without replacing bending blades .
4.Flexiblely bending arc-side curbs from 0-90 degree;
5.Automatically forming the squared rectangle side curbs .
6.Automatically tightly folding edges of panel;
7.Automatically forming rectangle boxes with max.100mm height of side edges.
8.Automatically bending the various complicated combinations of various angles of edges for panel.
Application field
1) Stainless Steel kitchen industry 2) Elevator Industry 3) Chassis cabinet industry 4) Aluminum Veneer Curtain Wall Industry 5) Solar water heaters 5) Auto Bicycle Accessories 7) Audio equipments 8) Household applicances etc.
We Care What You Care -- AIOTEKQingdao Aiotek Intelligent Equipment Co., Ltd. is one well-known manufacturer which is specialized in CNC punching machine in North China from 2006. We are total solution provider of sheet metal machine tools.In March 2017, our company moved into a high-level industrial park. The new plant is focusing on the R&D and manufacturing of high-end CNC machines for sheet metal industry, including CNC turret punching machine, all-electric servo turret punching machine, press brake, intelligent flexible bending center and laser cutting machine. We're an excellent team being engaged in intelligent flexible bending center while being the company who owns the patents for intelligent flexible bending center in China.Powerful R&D center ensures that our machines are equipped with the most cutting-edge technologies. With a professional team and rich experience, we have over 300 factories all around China as our partners for a long-term cooperation, and over 1000 sets of machines have been installed and come into use with stability.We also have timely after-sales service without time difference to ensure the stability of enterprise production by minimizing costly downtime.Our machines are widely used in electric cabinets, air conditioning, elevators, kitchenware, aluminum veneer, solar water heaters, auto and bicycle accessories, audio equipment, household appliances and other sheet metal industries. They have been exported to Southeast Asia, South Asia, Central Asia, Africa, Middle East, Russia, and other countries and regions.With us, you'll make your solution more productive!
FAQ1. Who are we?
We are based in Shandong, China, start from 2021,sell to Mid East(40.00%),Eastern Asia(30.00%),South Asia(20.00%),Eastern Europe(10.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Automatic Panel Bender (Flexible Bending Center ), CNC Turret Punching Machine, Press Bake Laser Cutting and production lines.
4. Why should you buy from us not from other suppliers?
We are one-stop supplier for sheet metal machines. With a professional team and rich experience, we have over 900 factories all around China as our partners, our new plant is focused on international market. With us, you'll make your solution more productive.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency: USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C, Cash;
Language Spoken: English, Japanese, Russian, Korean
Basis on these questions, we can quickly recommend you the most suitable models

---
