Basic Info.
Application Area
Chemical
Certification
CE, GOST, ISO, SONCAP
800kg/Hr
High Speed Mixer
PVC Mixing Machine
PVC Mixing Machine
Plastic Mixer Machine
Plastic Mixer Machine
Material
Stainless Steel #304
Operating Type
Cycle Operating
Production Capacity
300kg/Hr
Product Description
Competitive price for Plastic industry PVC/SPVC/WPC Powder/dry blender/ granules/masterbatch/higher filler high speed Vertical/Cooling Mixer
Workshop:
Product Description

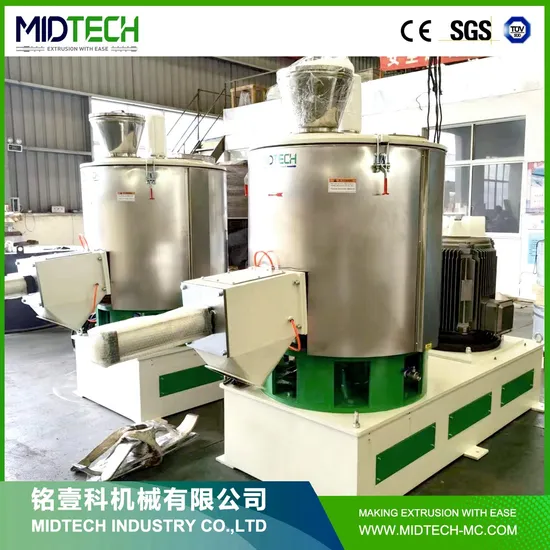

High-Speed Mixer is used in the material mixing, stirring, coloring and other process for plastic, rubber, daily chemical and other industries. It is the perferable equipment to produce plastic board, pipes, profiles and degradable plastics.
Features:
1. Mixed materials are made by negative pressure mixed principle
2. The electrical instruments are all well-known imported appliances with PLC programmable control
3. High degree of automation and speed mixing
4. The blade was made by stainless steel pressure and passed the static and dynamic balance test
5. Especially the coolant blade ued abroad advaned spiral mixing structure, the whole container has no dead angle, cooling speed and discharging clean.
6. Large volume
Certificate: ISO9001: 2008, CE, SGS
| SRL-Z | Heat/Cool | Heat/Cool | Heat/Cool | Heat/Cool | Heat/Cool |
| Total volume (L) | 100/200 | 200/500 | 300/600 | 500/1250 | 800/1600 |
| Effective capacity (L) | 65/130 | 150/320 | 225/380 | 330/750 | 600/1050 |
| Stirring speed (RPM) | 650/1300/200 | 475/950/130 | 475/950/100 | 430/860/70 | 370/740/50 |
| Mixing time (Min.) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
| Motor power (KW) | 14/22/7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
| Overall dimension(mm) | 1950*1600*1800 | 4580*2240*2470 | 4800*2640*2480 | 5600*3000*3100 | 5170*3200*4480 |
| Weight(kg) | 2200 | 3400 | 3600 | 6500 | 9800 |
If you need any support, please don't hesitate to call me on phone
>>
