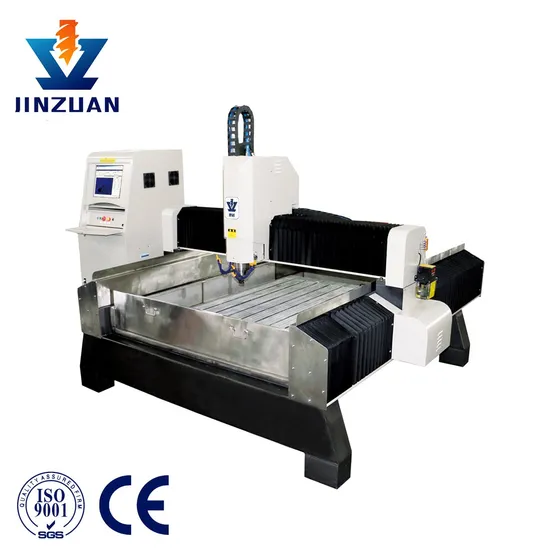

Cheap Price Stone Engraving Machine for Granite

Product Description

Product Parameters

Model NO.	1325C-1D
Platform Dimension:	1300*2500mm
Working Size:	1200*2400mm
Machine Body:	Thickened Steel (10mm)
Working Table:	Aluminum T-Slot Table with PVC Plate
Linear Guide Rail:	X Y Z Axis PMI-30
Transmission:	X Y Axis Helical Rack; Z Axis Ball Screw
Feed Height:	≤430mm
Air Speed:	15m/min
Processing Speed:	10m/min
Spindle Power:	5.5kw Water Cooling Spindle (Frequency Conversion)
Spindle Speed:	6000-24000rmp/min
Drive:	Servo Drive
Motor:	Servo Motor
Bearing:	X: single guide rail, Y: single guide rail, Z: single guide rail
Lubrication:	Automatic Lubrication
Coolant System:	Industrial Coolant System
Operating Voltage:	AC220V/50HZ or AC380V/50HZ
Water Tank:	Stainless Steel
Engraving Tool:	Φ6/8/10/12/14/16mm
File Format:	G code/HPGL
Positioning Accuracy:	±0.03mm
Repeatability:	±0.02mm
Control System:	NC Studio
Machine Dimension:	2200*3500*2200mm
Weight:	2600kg

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time.
Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory
is at Shuitou town, Fujian province.
The biggest stone manufacture area in China. Maybe also the biggest importer &
exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat,
facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.

---
