Tire Recycling Plant/Waste Tyre and Rubber Recycling Business

Product Description

Tire Recycling Plant/Waste Tyre And Rubber Recycling Business
1.Main working process
2.Tire Debeader ( oil hydraulic type)
Model: LS-1200 Capacity:20-40 tires/hour
Pulling force(T): 13
Max.tire diameter 1200mm
Power(KW): 11KW
Stroke distance: 1300mm
Dimension(L*W*H): 3.6*0.78*1.02
Weight: 2500KG
3.Whole tire cutter
Model :WTC1200
Capacity:20-40 tyres/h
Motor power:5.5kw
Tire range:Max 1200mm
Dimension:2080*1000*2130mm

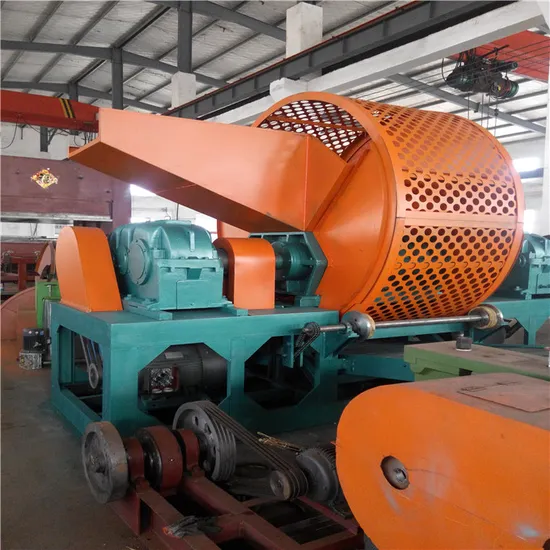

4.Whole tyre shredder

Model	ZPS-900	ZPS-1200
Production capacity	1.5-2 Ton/hour	3.5-4Ton/h
Size of feeding	≤900 mm whole tyre	≤1200 mm whole tyre
Discharging particles	≤50*50mm	≤60*60mm
Motor powder	60 kw	110 kw
Discharging motor	2.2 kw	4 kw
Cutter rotate speed	16 r/min	31 r/min
Screener rotate speed	6 r/min	8 r/min
Dimension (L*W*H)	3.5*2.4*2.4 m	4.5*3.2*3.5 m
Weight	8.2 Ton	13.5 Ton

Details :
Knives material: H3 , Germany standard, forged, heat treatment by high frequency, some factory only use 45# steel, the Price is more cheaper(only 1/3 of H3 ), but the life is more shorter! The life of the knives is the most important for the shredder machine.
5.Tire crusher

Type	XKP-400	XKP-450	XKP-560
Front roll diameter(mm)	400	450	560
Rear roll diameter (mm)	400(grove roller)	450 (grove roller)	510 (grove roller)
Working length of rolls(mm)	600	650	800
Front roll surface speed(m/min)	17.32	23.2	25.56
Friction ratio	1:1.38	1:1.38	1:1.30
Max.nip(mm)	8	8	15
Production capacity(kg/h)	200-300	600-800	-1500
Motor power(kw)	45	55	75
Overall dimension(mm)	3950*1800*1780	4770*1846*1835	5064*2284*1978
Weight(kg)	7000	12000	18000

6.Big conveyor belt
7.Magnet separator
8.Fiber separator
Capacity:500-1000kg/h
Motor power:5.5*2+0.75 kw
Dimension:1.5*1.5*3.4(m)
Weight:about 1.5Ton
9.Rubber grinder
10.Machines installed in our workshop now
11.Machines installed in our workshop now
12.Loading the container
