Steel Plant Heavy-Duty CNC Atuomatic Roll Turning Lathe Ck8450 Ck8465 Ck8480 Ck84125

Product Description

Product Description
Steel Plant Heavy-Duty CNC Atuomatic Roll Turning Lathe Ck8450 Ck8465 Ck8480 Ck84125
CK8450 CNC Roller Lathe Machine for processing rolling mill mainly used for semi-finish turning and finish turning processing of cast iron, steel and nonferrous metal roll. Cutters made of high-speed steel. This lathe can be used for turning and processing roll excircle, end faces, various complex pass profiles and curved surfaces, or for the processing of shaft parts made of materials such as cast iron, steel and nonferrous metal.
Specifications CNC Roll Turning Lathe
Roll diameter: 500mm, 650mm, 800mm
Roll length: as requirement
CNC system: Siemens828D
Features:
This CNC roll turning lathe machines are mainly used in the semi finishing and finishing turning processing work for cast iron, steel and Non-ferrous metal rolls. The machines adopt high speed iron steel, tungsten-carbide or other kind of material cutters. These kinds of designs support the machines to do turning and repairing processing work for the rolls' ex circle, head face, all kinds of complex groove face and curved surface. They can also process the similar cast iron, steel and non-ferrous metal shafts as rolls in same weight range for semi finishing and finishing work on ex circle, head face, and all kinds of complex groove face.
The machine adopts four guide way or four in one guide way. The longitudinal and cross movement adopt high rigid rectangular guide way .With the combination frame blade holder of high rigid cutter row on the rectangular, the machines have improved the rigidity and stability. We adopt high accuracy and radial clearance of the double row short cylindrical roller bearings as machine's spindle bearings to ensure the machine's high rigidity, stability and high accuracy. All the designs make sure the machines in integrated processing precision. And the work pieces will be processed in high accuracy.
Machines adopt paste hardened plastic guide way and centralized lubrication systems for every guide ways' lubrication. It uses fixed-point quantitative oil supply principle. This ensures that the dynamic response of the system and the long using life for the machine's guide ways' lubrication. Machines adopt full stainless steel covers for guide way. This kind of design will keep the machine's accuracy.
Product Parameters

Main parameters	Unit	CK8450x2500mm
Max.turning diameter	mm	500
Max. turning length	mm	2500
Center height	mm	350
Max. Weight of workpiece	kg	3500
Range of spindle speed	r/min	0-400
Number of spindle speeds		Stepless
Max. Cutting force	KN	20
Max. Torque of faceplate	KN.m	10
Faceplate diameter	mm	500
Longitudinal (Z axis) feed speed range	mm/min	1-3000
Horizontal (X axis) feed speed range	mm/min	1-2000
Horizontal (X axis) rapid move speed	mm/min	2000
Longitudinal (Z axis) rapid move speed	mm/min	3000
The tailstock sleeve diameter	mm	180
The tailstock sleeve travel	mm	150
Tailstock taper hole size	MT	5
Main motor power	kw	30
Spindle box lubricate motor power	kw	0.75
Knife rest centralization lubrication	w	60
Overall dimensions	mm	6000X2245X1400
Machine weight	kg	11500
CNC control system		Siemens828D

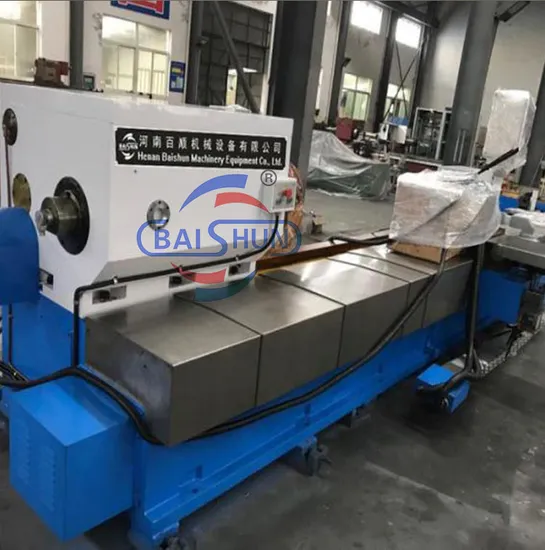

Detailed Photos
FAQ
Q: Why Choose Us?
1). We are manufacturer with own factory for many years with CE Certification
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
Q: What Is Our Service?
1). Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
2). Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
3). After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
Q: How About The Motor?
A: We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your requirement.
Q: How long does it take to make a product?
A: It depends on size and type of machine.Normally, small size machine takes around 7-30 days, larger one takes around 30-60 days.
A:Yes, we provide testing videos in factory for each machine before shipment.
We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you the best prices.
Welcome get in touch with us:)
