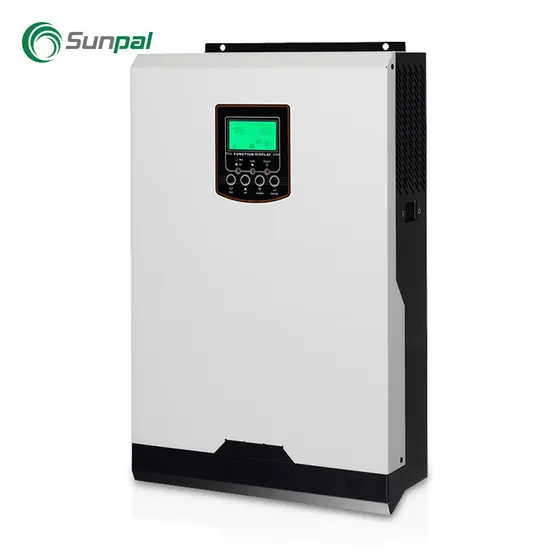

Sunpal OEM MPS-V-5000-48 5KW 230V Single Phase Pure Sine Wave Power Inverter With Wifi

US$399.00
2-49 Pieces
US$299.00
50-299 Pieces
US$199.00
300-29,999 Pieces
US$99.00
30,000+ Pieces

Basic Info.

Model NO.
Axpert MKS
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE, ISO9001, CCC
Brand
Sunpal
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Waveform
Pure Sine Wave
AC Input Voltage Range
230 VAC
Selectable Voltage Range
170-280 VAC (for Personal Computers); 90-280 VAC (
Frequency Range
50 Hz/60 Hz (Auto Sensing)
Transfer Time
10ms (for Personal Computers); 20ms(for Home Appli
Battery Voltage
24VDC/48VDC
Floting Charge Voltage
27VDC/54VDC
Overcharge Protection
33VDC/63VDC
Maximum Charge Current
80A/60A
Maximum PV Array Power
4000W (5000W Optional for 5kw Model)
MPPT Range @ Open Circuit Voltage
120~450VDC
Maximum PV Array Open Circuit Voltage
500VDC
Maximum Charging Current
80A
Maximum Efficicency
98%
Communication Interface
USB / RS232
Transport Package
Cartons
Specification
100*300*440mm
Trademark
Sunpal
Origin
China
HS Code
8504403090
Production Capacity
100000PCS/Year

Packaging & Delivery

Package Size
13.00cm * 30.00cm * 46.00cm
Package Gross Weight
10.000kg

Product Description

Product Description
Technical Specifications
MODEL MPS-V- 3000-24 MPS-V- 5000-48
Rated Power 3200VA / 3200W 5000VA / 5000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range 50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 6000VA 10000VA
Efficiency (Peak) 97% /94%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY& AC CHARGER
Battery Voltage 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC
Overcharge Protection 33 VDC 63 VDC
Maximum Charge Current 80A 60A
SOLAR CHARGER
Maximum PV Array Power 4000 W(5000W optional for 5KW model)
MPPT Range @Operating Voltage 120~450 VDC
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum Charging Current 80 A
Maximum Efficiency 98%
PHYSICAL
Dimension,DxWxH (mm) 100 x 300 x 440
Net Weight (kgs) 9 10
Communication interface USB / RS232
Monitoring WIFI / GRPS (optional)
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C - 60°C

Product specifications are subject to change without further notice. Our Factory
