N-Type 585W 590W Power PV Mono Facial Module 580W Jinko Solar Panel

US$0.09
100,000-4,999,999 Watt
US$0.08
5,000,000-9,999,999 Watt
US$0.06
10,000,000+ Watt

Basic Info.

Model NO.
JKM570-590N-72HL4-BDV
Number of Cells
72pcs
Application
Solar System
Condition
New
Certification
ISO, CE, TUV, IEC
Material
Monocrystalline Silicon
Cell Type
N Type Mono-Crystalline
Weight
31 Kg (68.34 Lbs)
Junction Box
IP68 Rated
Frame
Anodized Aluminium Alloy
Transport Package
Carton & Wooden Pallet
Specification
2278*1134*30mm
Trademark
Jinko
Origin
China
HS Code
8541430000
Production Capacity
50000PCS/Month

Product Description

Product Description
Product Parameters
Module Type JKM580N-72HL4-BDV JKM585N-72HL4-BDV JKM590-72HL4-BDV
Maximum Power (Pmax) 580Wp 585Wp 590Wp
Maximum Power Voltage (Vmp) 43.88V 44.02V 44.17V
Maximum Power Current (Imp) 13.22A 13.29A 13.36A
Open-circuit Voltage (Voc) 52.50V 52.70V 52.90V
Short-circuit Current (Isc) 13.95A 14.01A 14.07A
Module Efficiency STC (%) 22.45% 22.65% 22.84%
Operating Temperature( ) -40~+85ºC
Maximum system voltage 1000/1500VDC (IEC
Maximum series fuse rating 30A
Power tolerance 0~+3%

Product detail
Product packaging
Type pallet 40HQ
JKM570-590N-72HL4-BDV 36PCS 720PCS

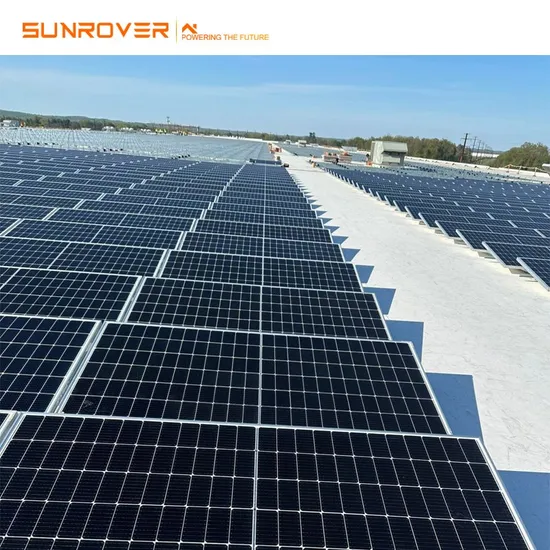

Our projects
